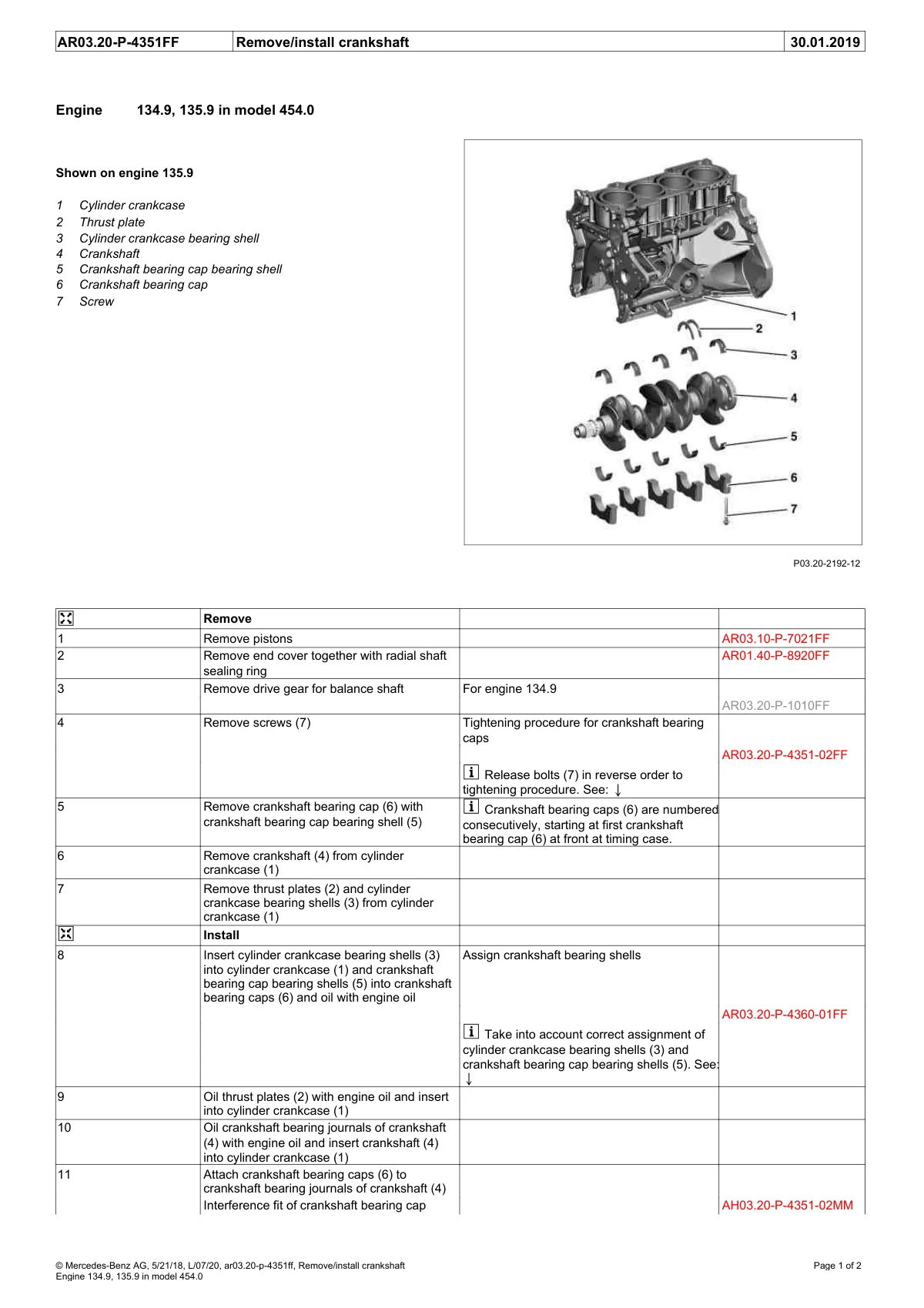

Crankshaft removal and installation procedure for 454.0 engine models 134.9 and 135.9, exploded view with numbered components.

Exploded diagram of crankshaft assembly with cylinder crankcase, thrust plate, bearing shells, and fasteners labeled 1-7.
