Heater unit assembly components including circulation pump, hoses, clamps, and coolant passages on 453 Smart Fortwo.

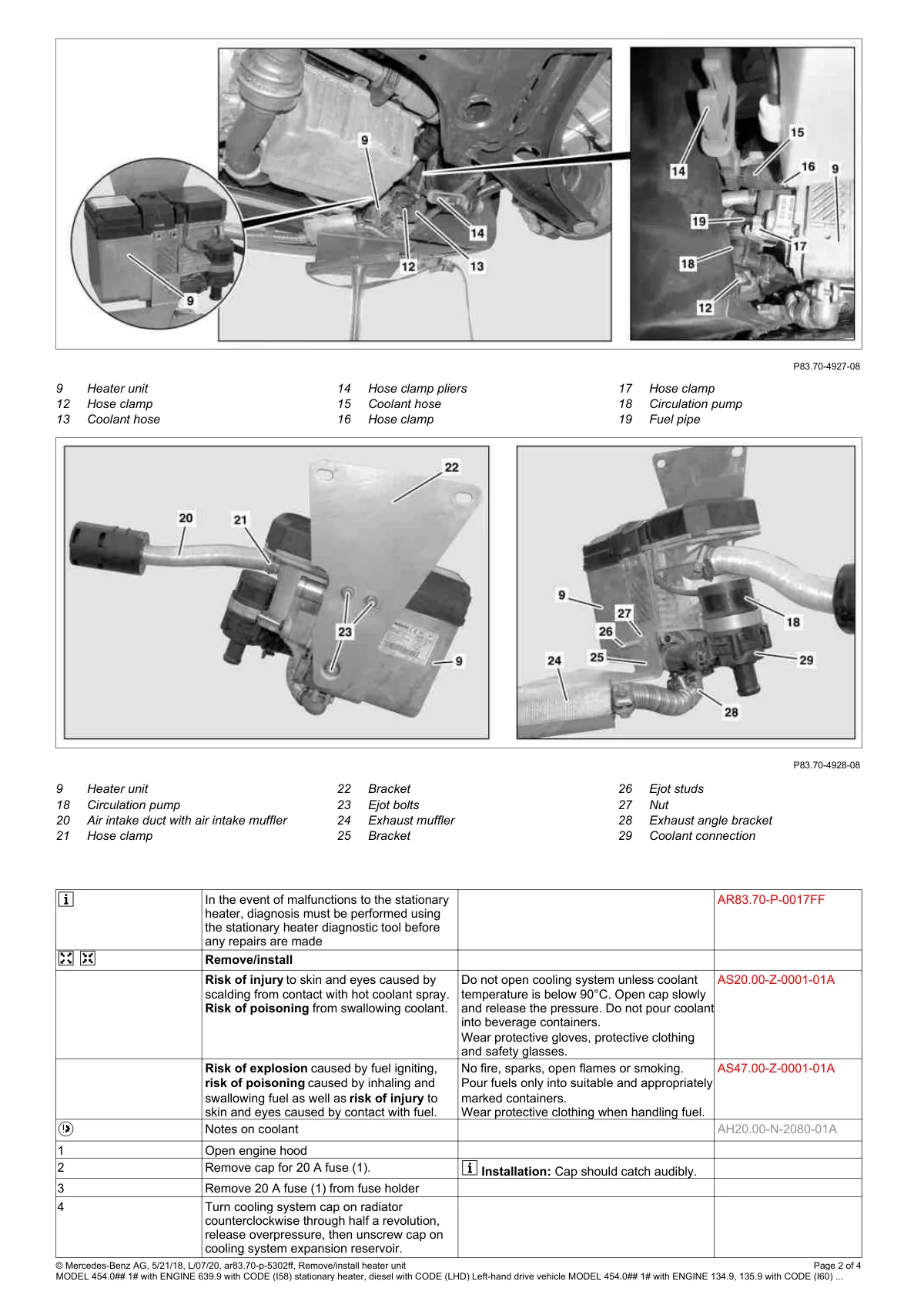

Multiple views of heater unit with numbered callouts showing hoses, pumps, and bracket locations.

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
