Wiring harness routing and axial solder connector repair procedures for Smart fortwo 451 electrical lines.

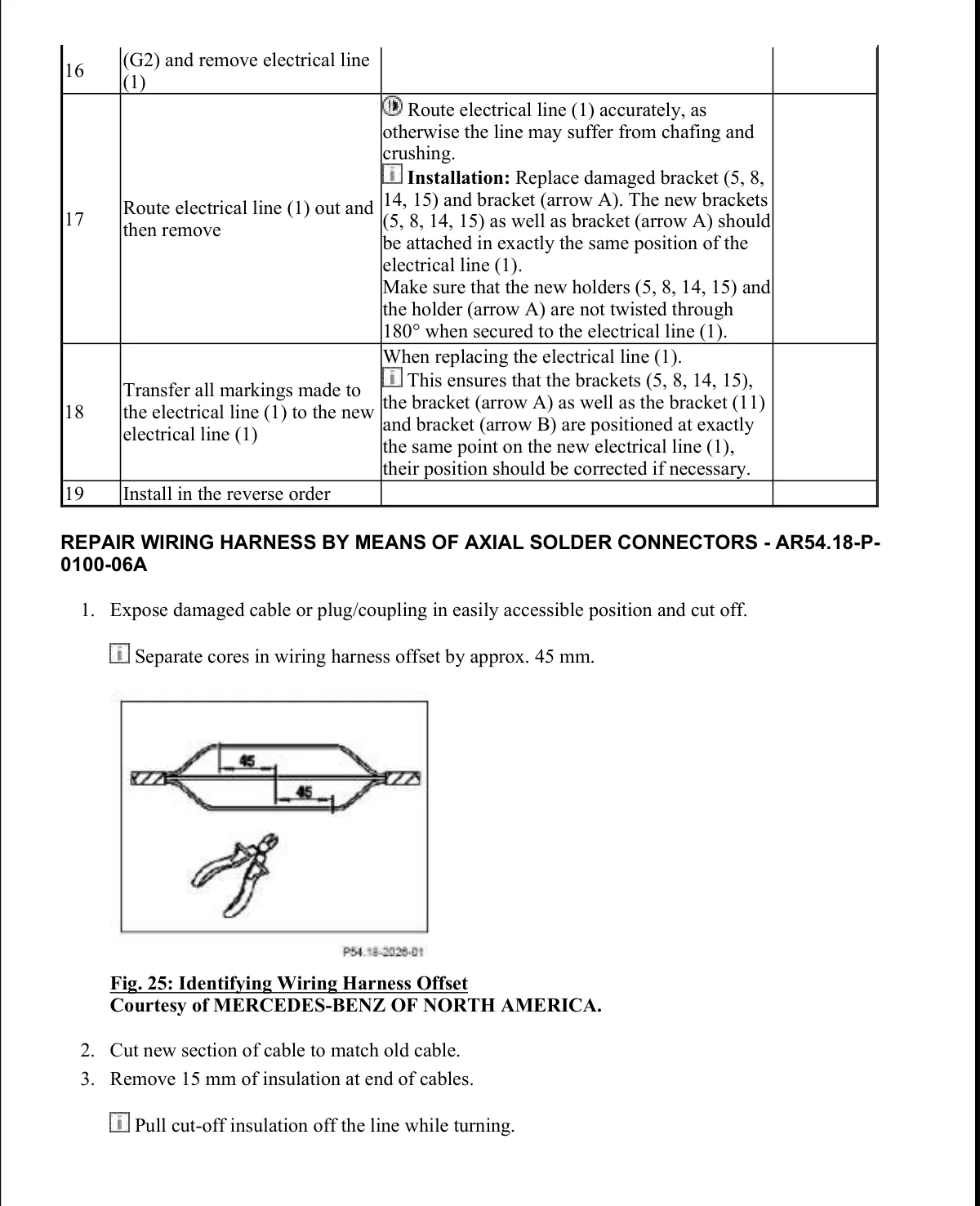

Service procedure table and diagram showing wiring harness offset measurement and solder connector repair steps.
