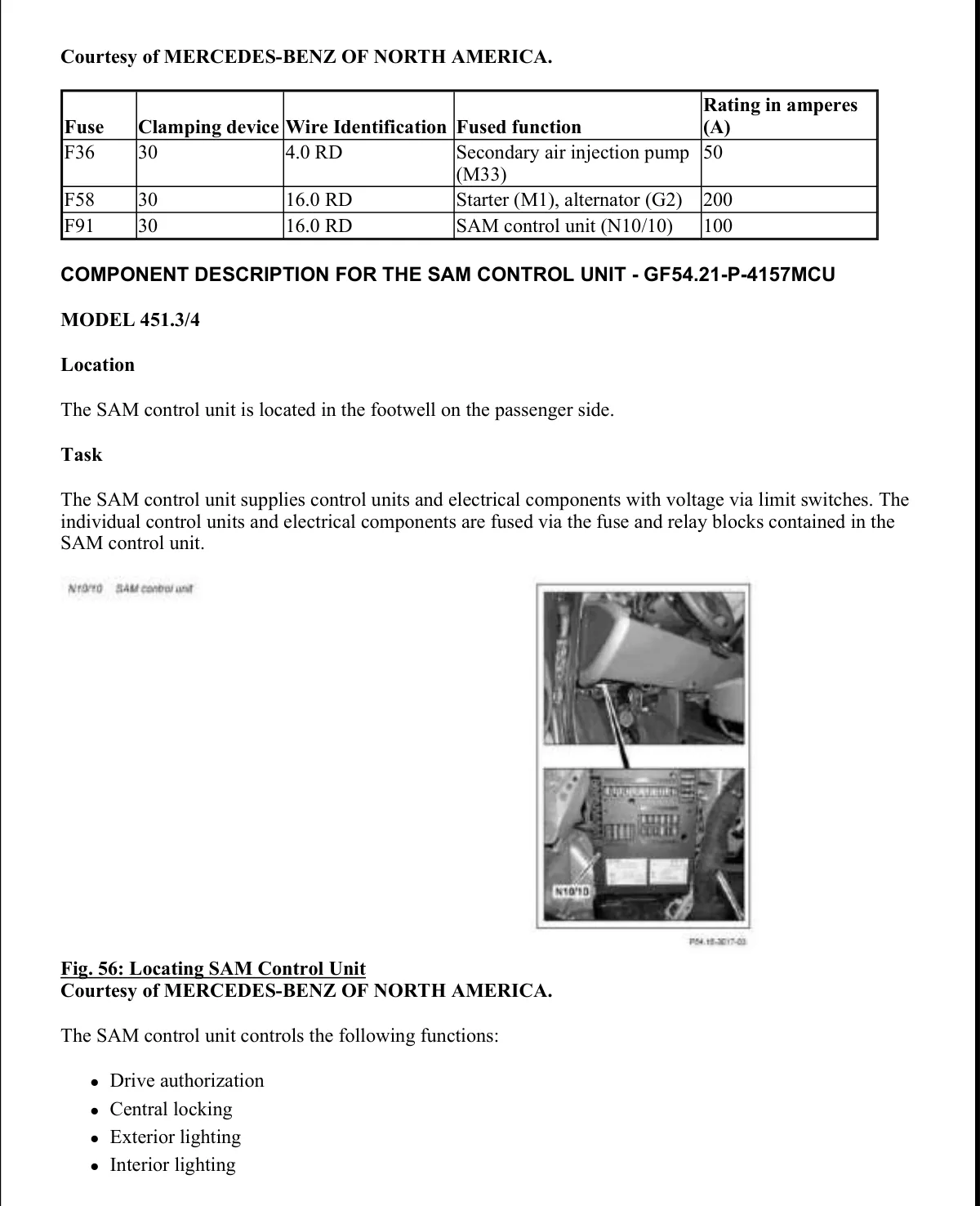

SAM control unit location, fuse specifications, and component description for chassis 451.3/4 Smart Fortwo.

SAM control unit mounted in passenger footwell; fuse table and location photographs shown.
