SAM control unit fuse and relay layout for Smart Fortwo 451, showing slots 1-35 and CAN-linked components.

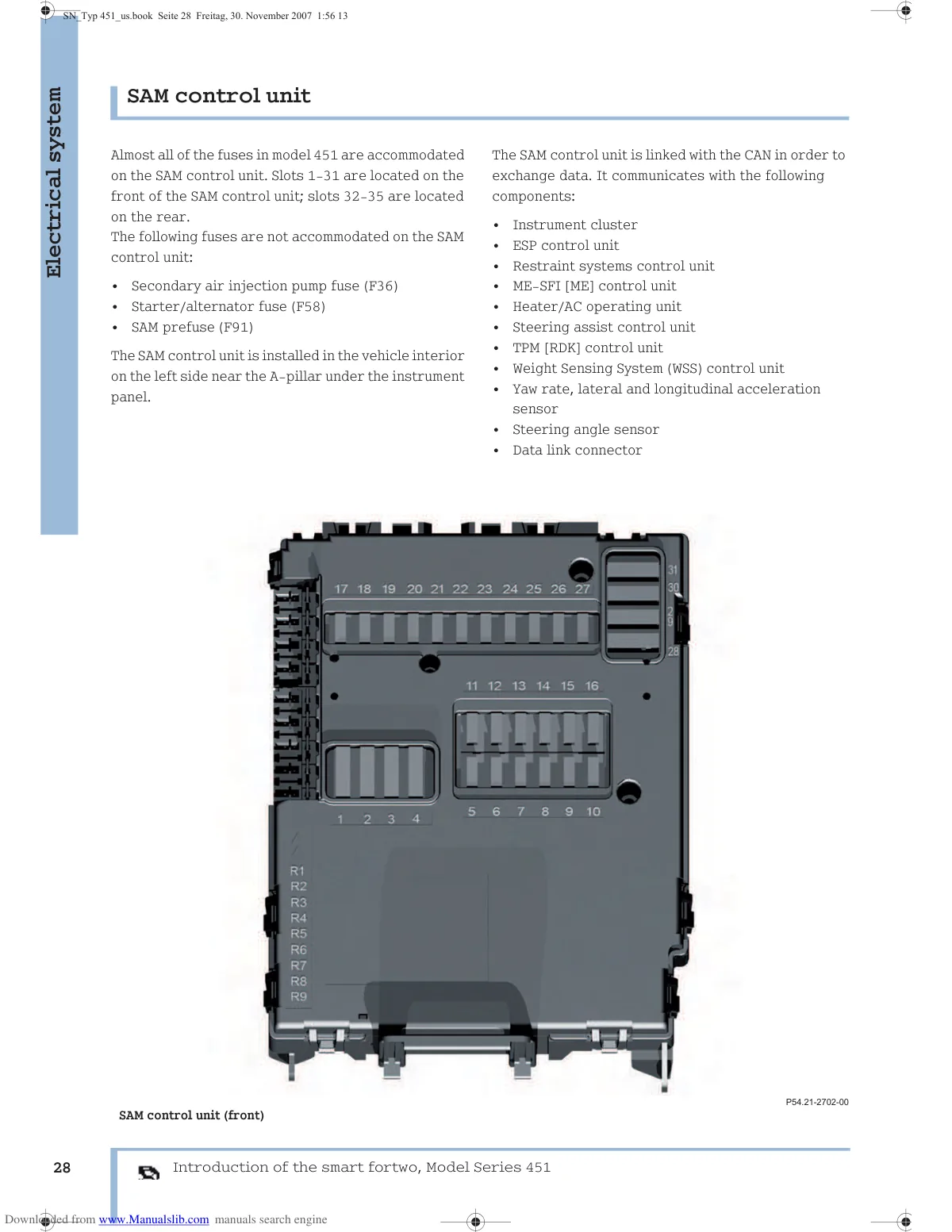

SAM control unit front view with numbered fuse slots 1-27 visible and relay positions R1-R9 labeled below.
