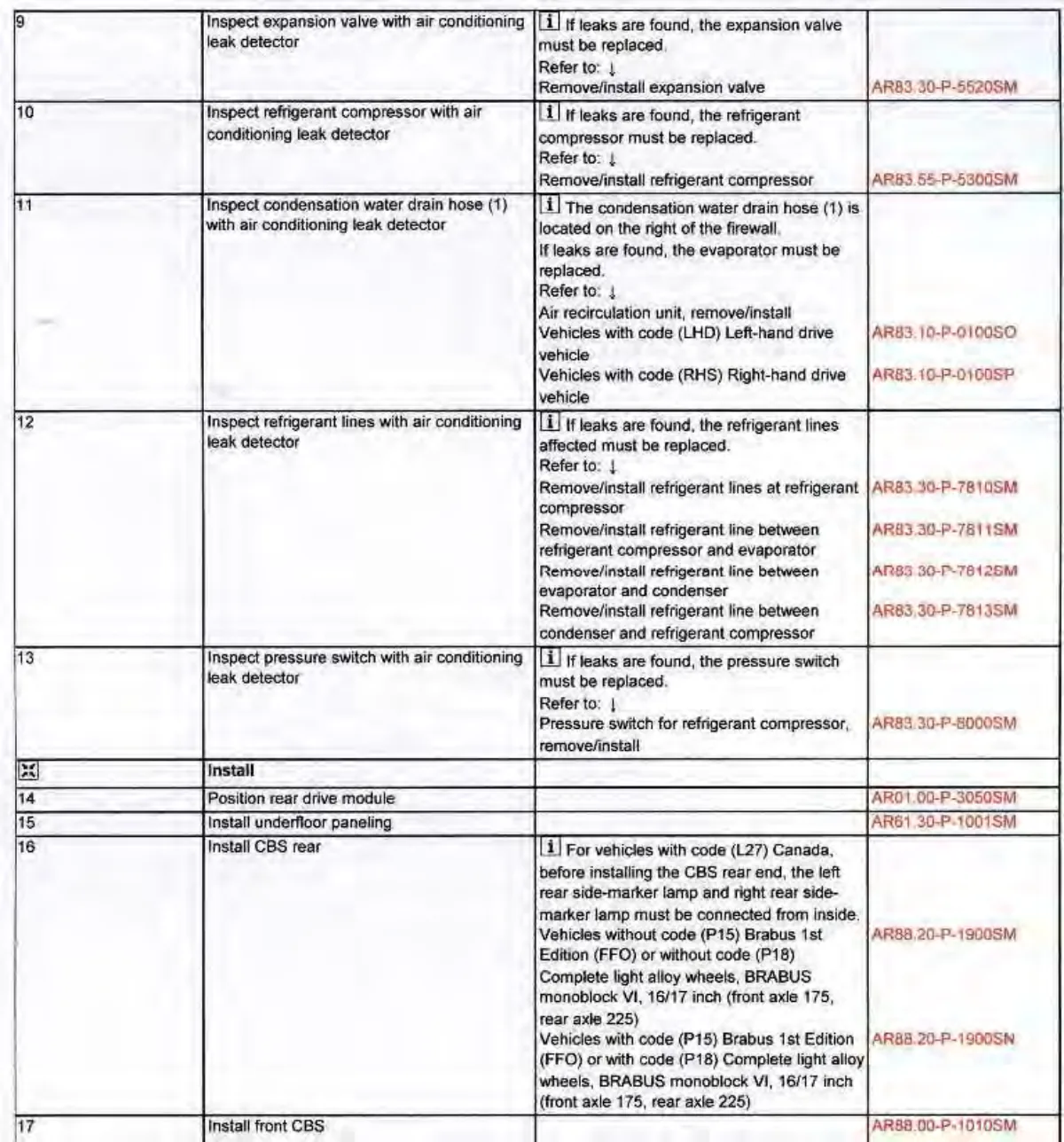

Air conditioning system inspection procedures for expansion valve, compressor, drain hose, refrigerant lines, and pressure switch with part numbers.

See all HVAC & Comfort figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
