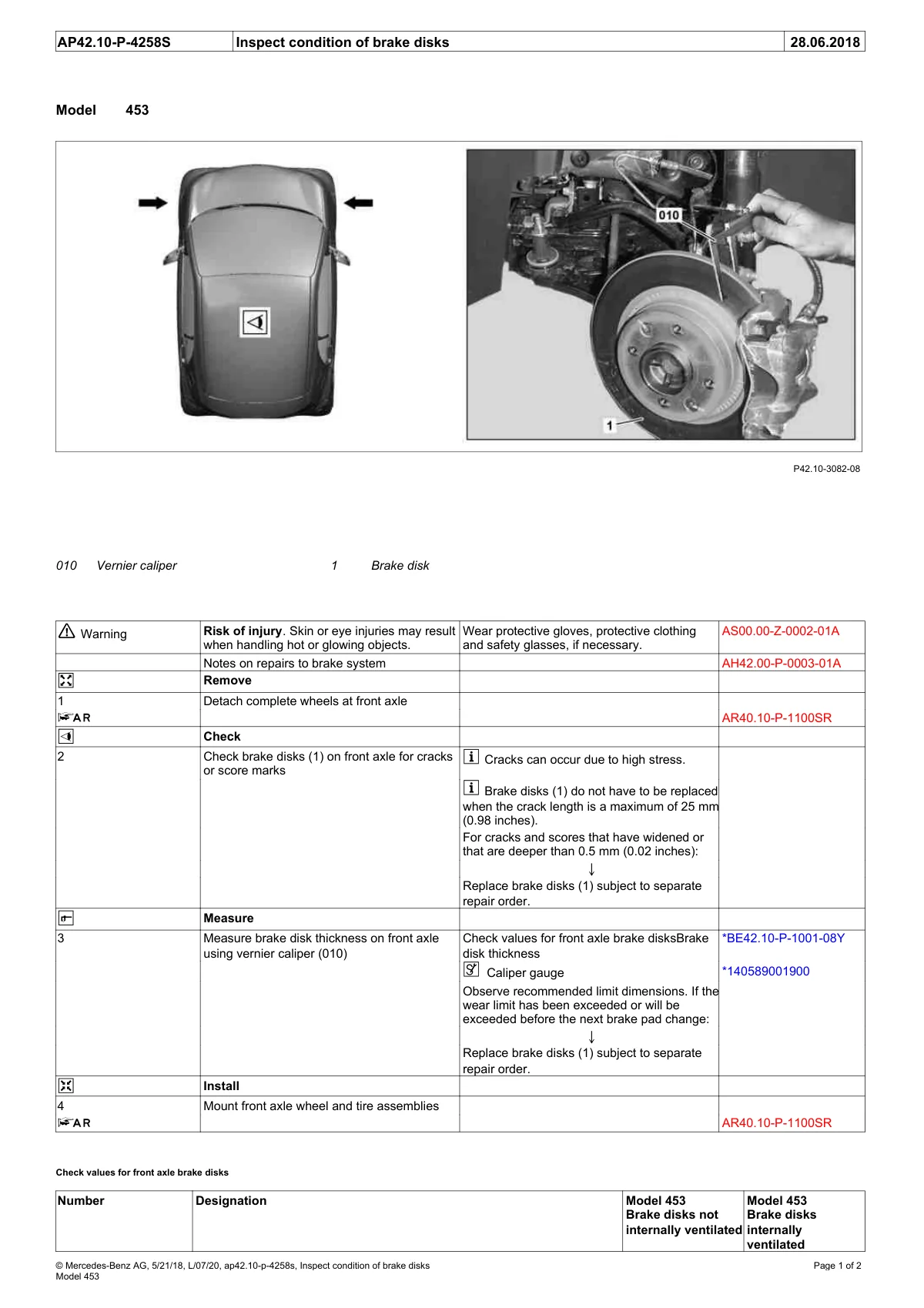

Model 453 brake disk inspection procedure with front axle location and caliper measurement technique.

Smart 453 top view and front brake caliper with disk inspection callouts
