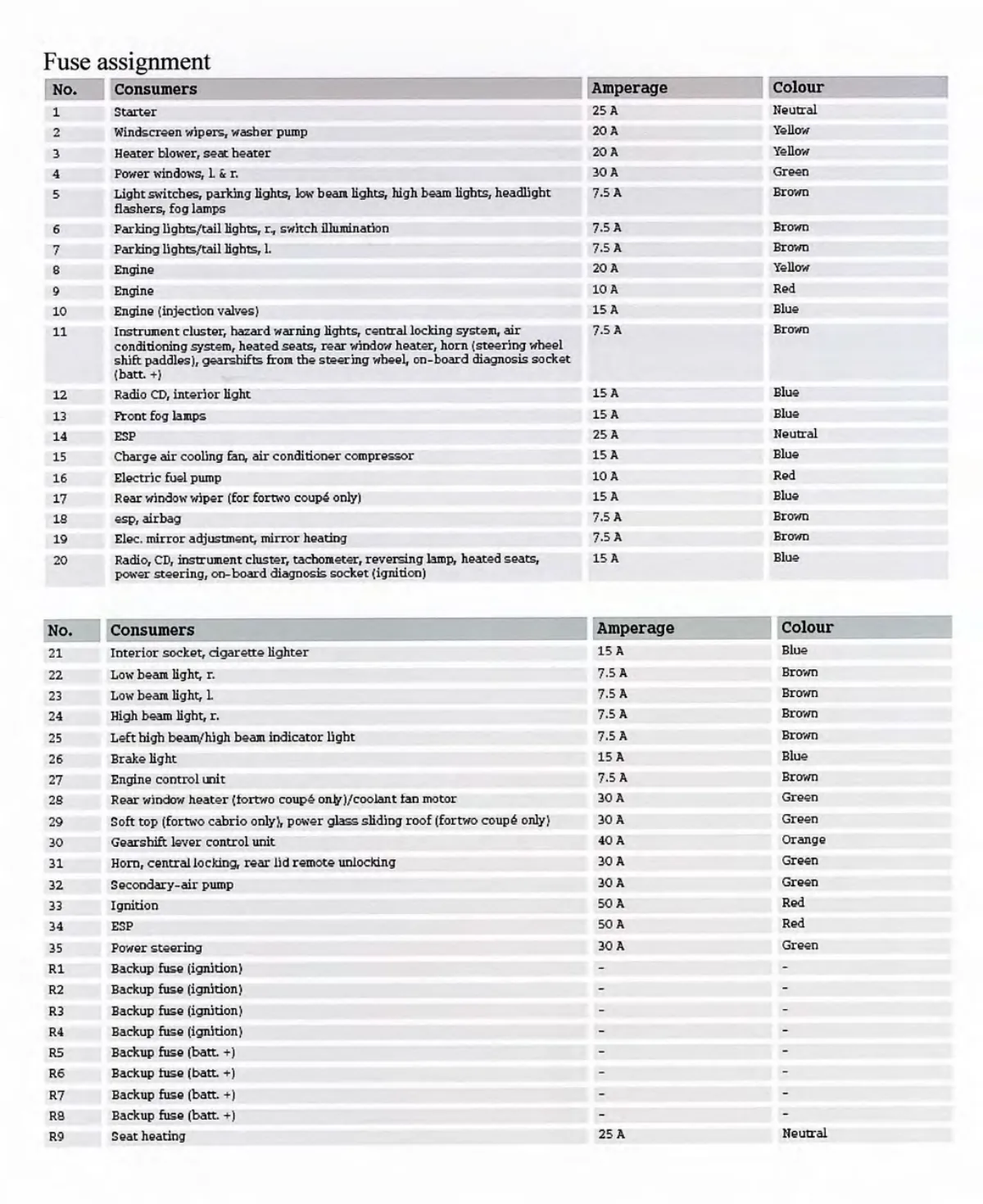

Fuse assignment table for Smart fortwo showing 35 fuses with amperage ratings, color codes, and protected electrical consumers.

Fuse assignment chart listing fuse numbers 1-35 plus backup fuses R1-R9 with amperage and wire colors
