Oil pan removal and installation procedure for Smart Fortwo 454.0 engines 134.9 and 135.9 with numbered callouts and torque specifications.

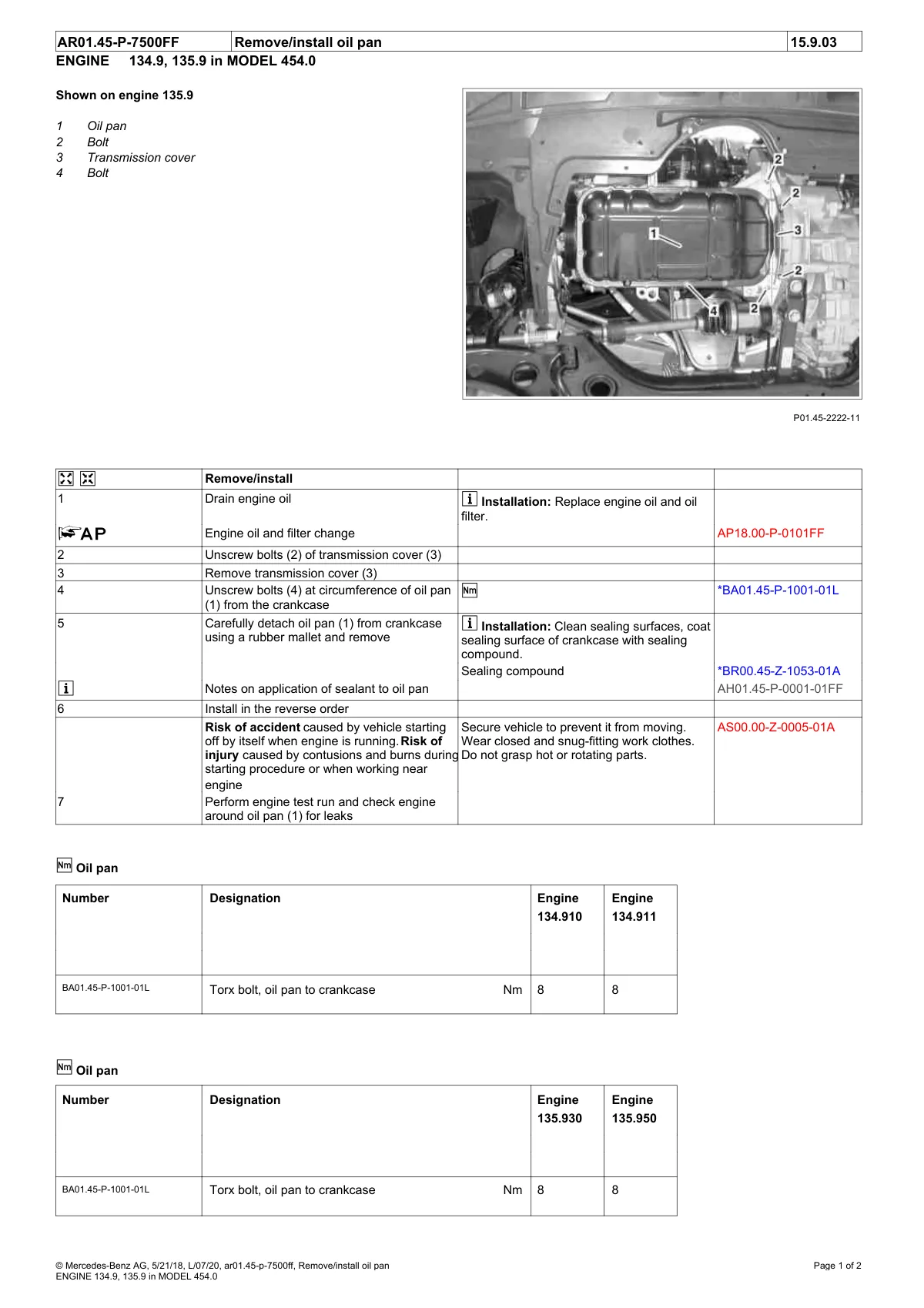

Engine oil pan removal diagram with four numbered callouts showing pan, bolts, and transmission cover on 454 chassis.
