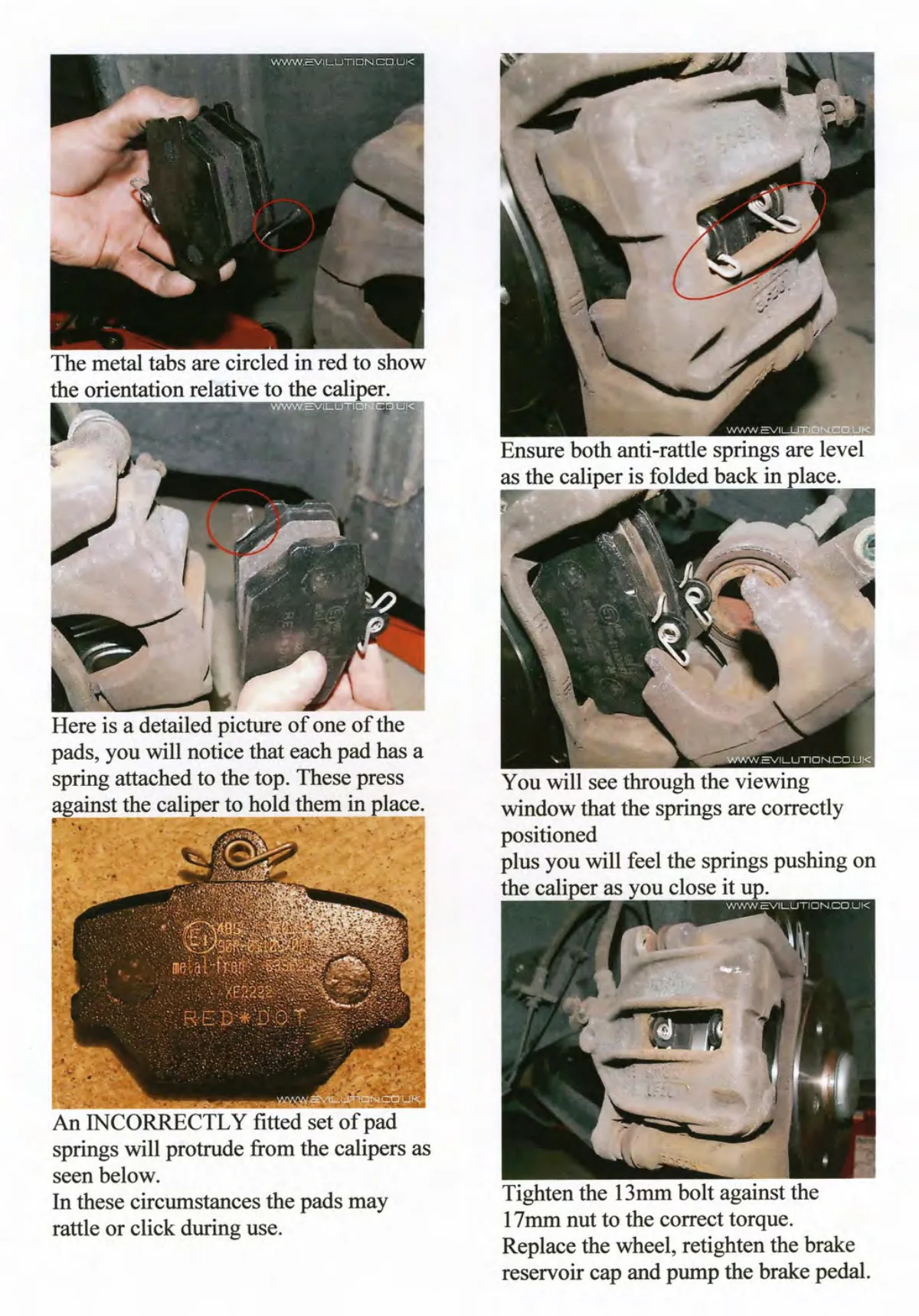

Brake pad spring orientation and caliper reassembly procedure for Smart ForTwo, showing metal tab alignment, anti-rattle spring positioning, and bolt torque specifications.

Six photos demonstrating brake pad installation, spring placement, and caliper reassembly steps with numbered callouts.
