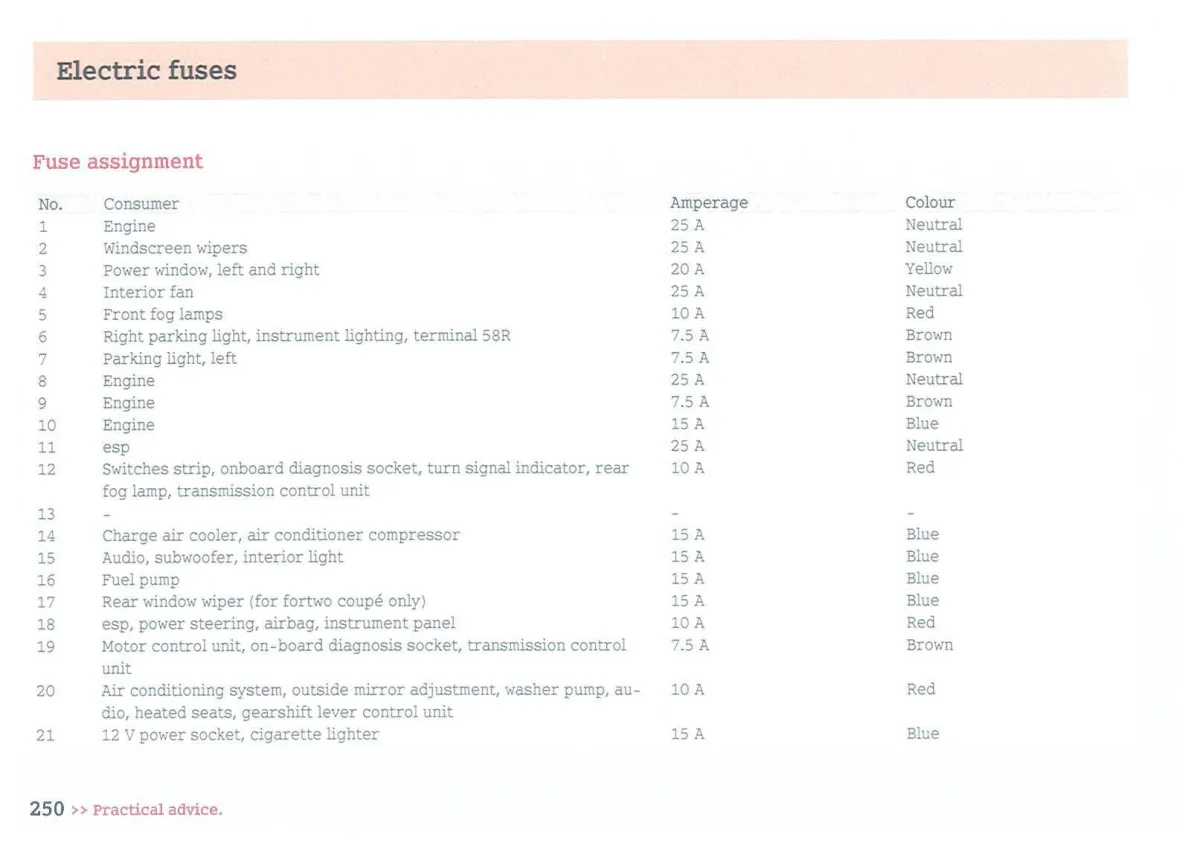

Electric fuses assignment table showing amperage and color codes for all 21 circuits in Smart Fortwo 451.

Fuse assignment chart listing 21 fuses with consumer, amperage, and color specifications
