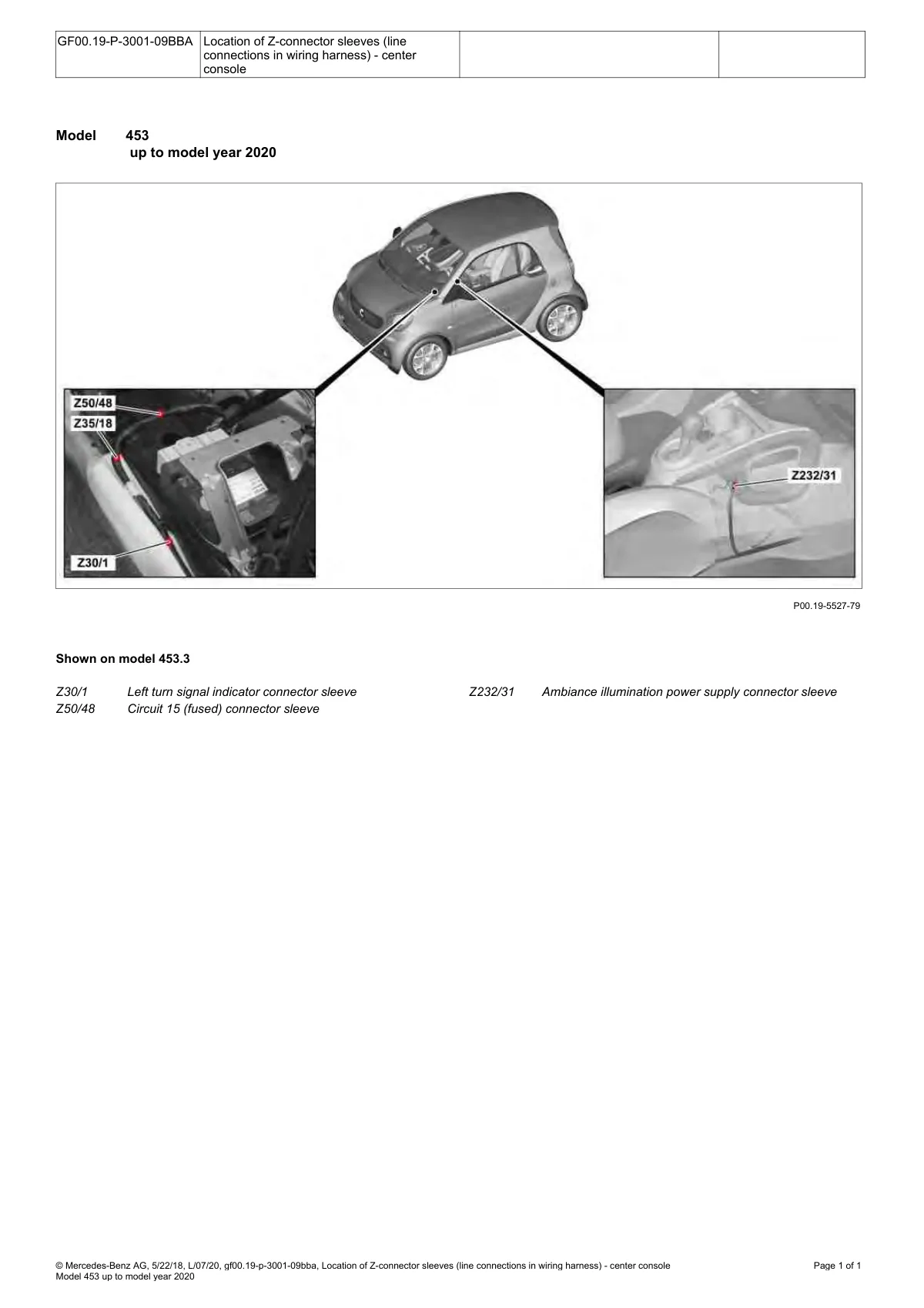

Z-connector sleeve locations in center console wiring harness, model 453 up to 2020.

Smart 453 diagram showing Z-connector locations under hood and center console with callout labels.
