Setting balance shaft basic position on 454.0 engine, with removal and installation steps including chain tensioner and oil pump components.

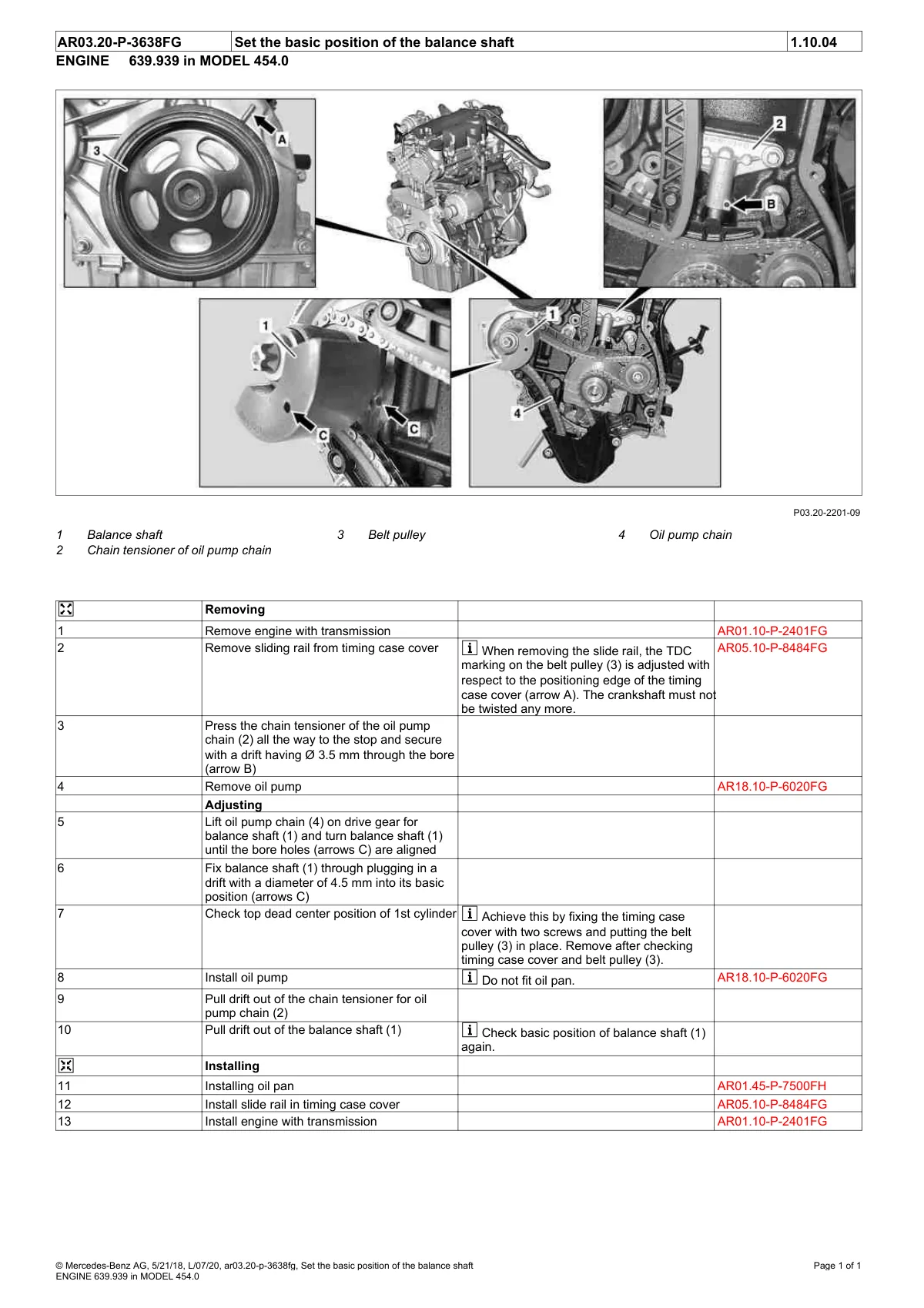

Engine service diagram showing balance shaft, belt pulley, oil pump chain, and numbered removal/installation procedure steps.
