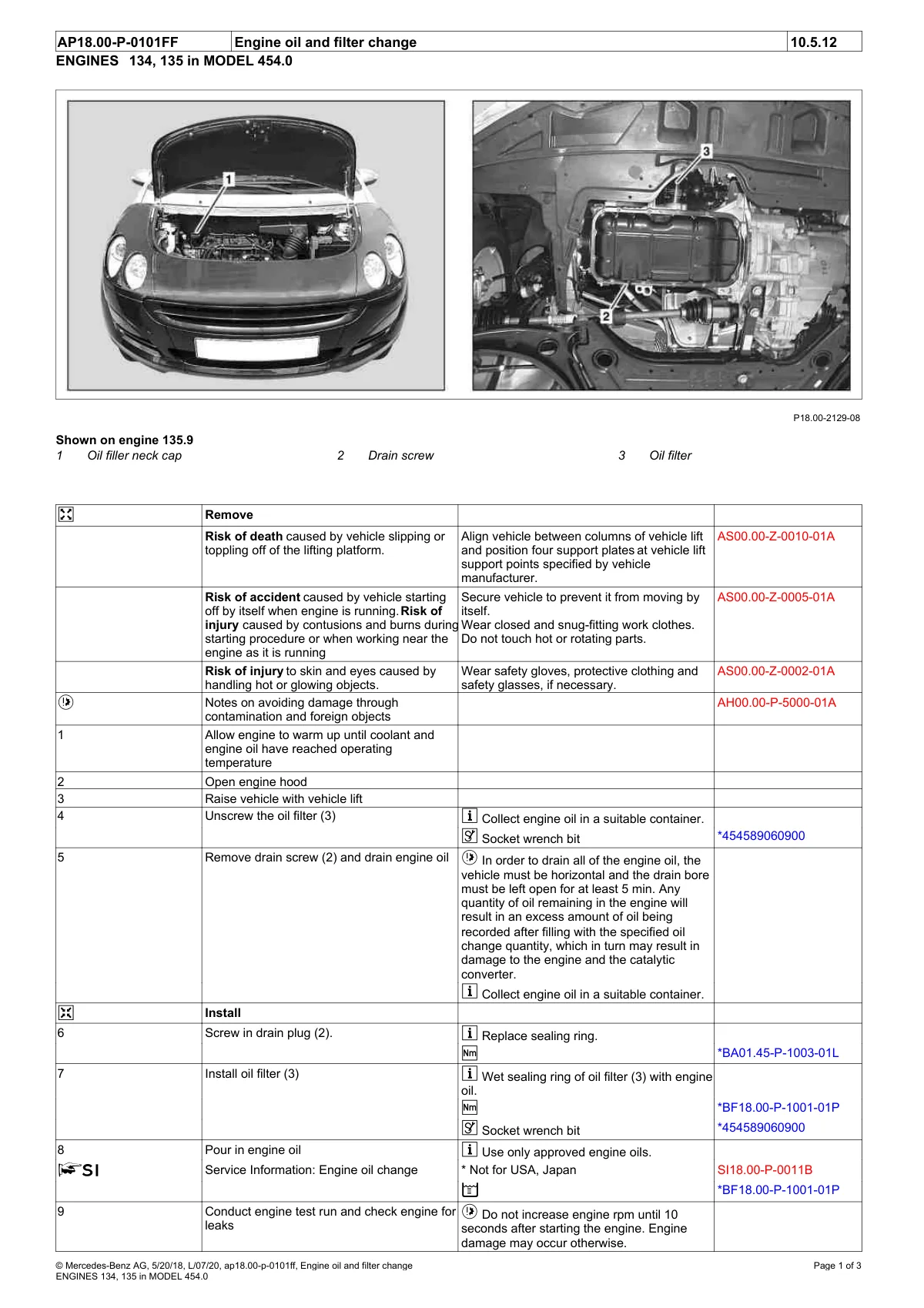

Engine oil and filter change procedure for 454.0 models with engines 134, 135; shows filler cap, drain screw, and oil filter locations.

Engine oil change diagram with three callouts identifying oil filler neck cap, drain screw, and oil filter on Smart 454.0
