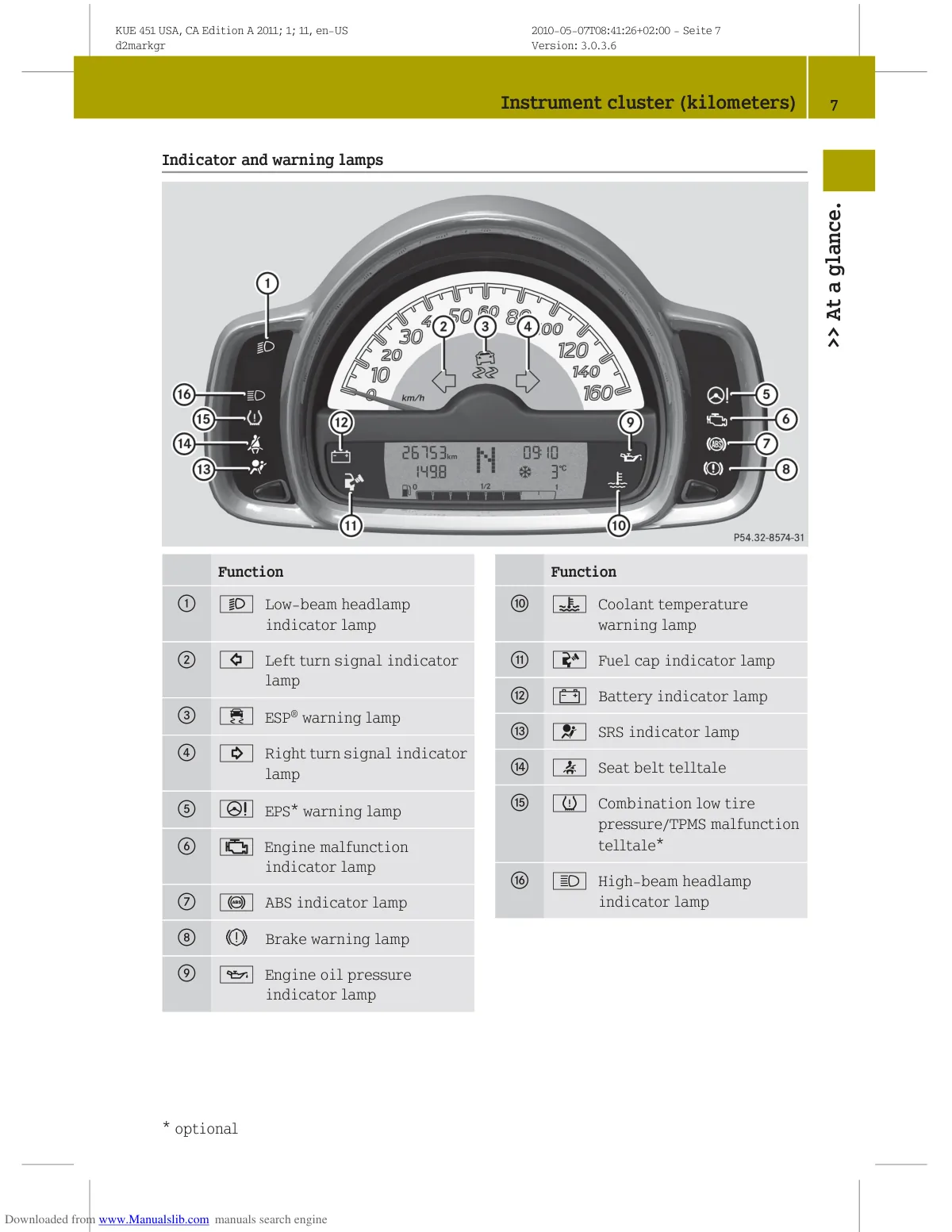

Instrument cluster kilometers display with 16 numbered indicator and warning lamp callouts identifying headlamps, turn signals, ESP, ABS, brake, oil pressure, coolant, fuel, battery, SRS, tire pressure, and seat belt functions.

Dashboard instrument cluster diagram with labeled warning lights and indicator lamps on a Smart Fortwo 451.

View full-size image ↗

See all Chassis figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
