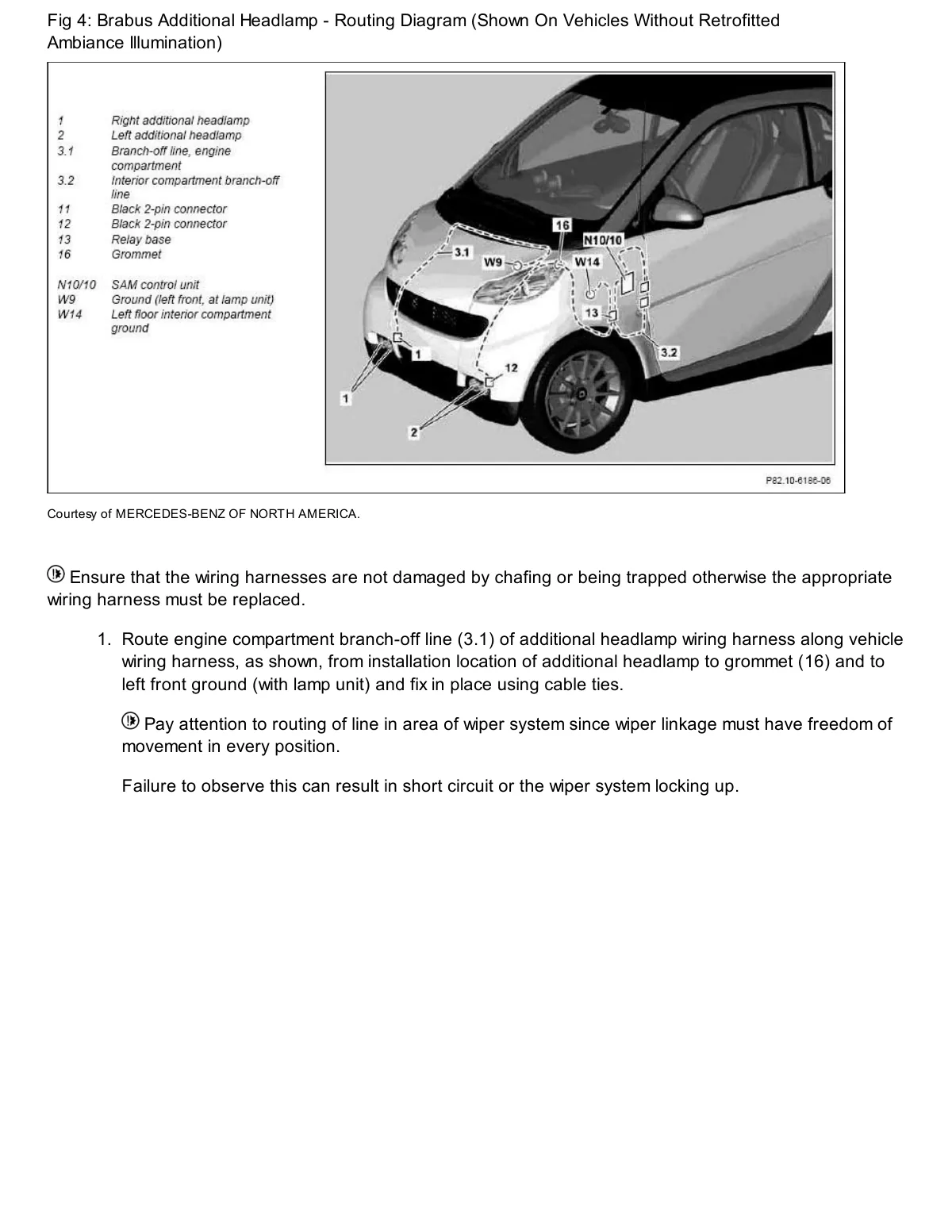

Brabus additional headlamp wiring routing diagram for smart fortwo chassis 450/451/452/454 without retrofitted ambiance illumination.

Numbered wiring diagram showing headlamp harness routing from engine compartment to front bumper and interior ground points.
