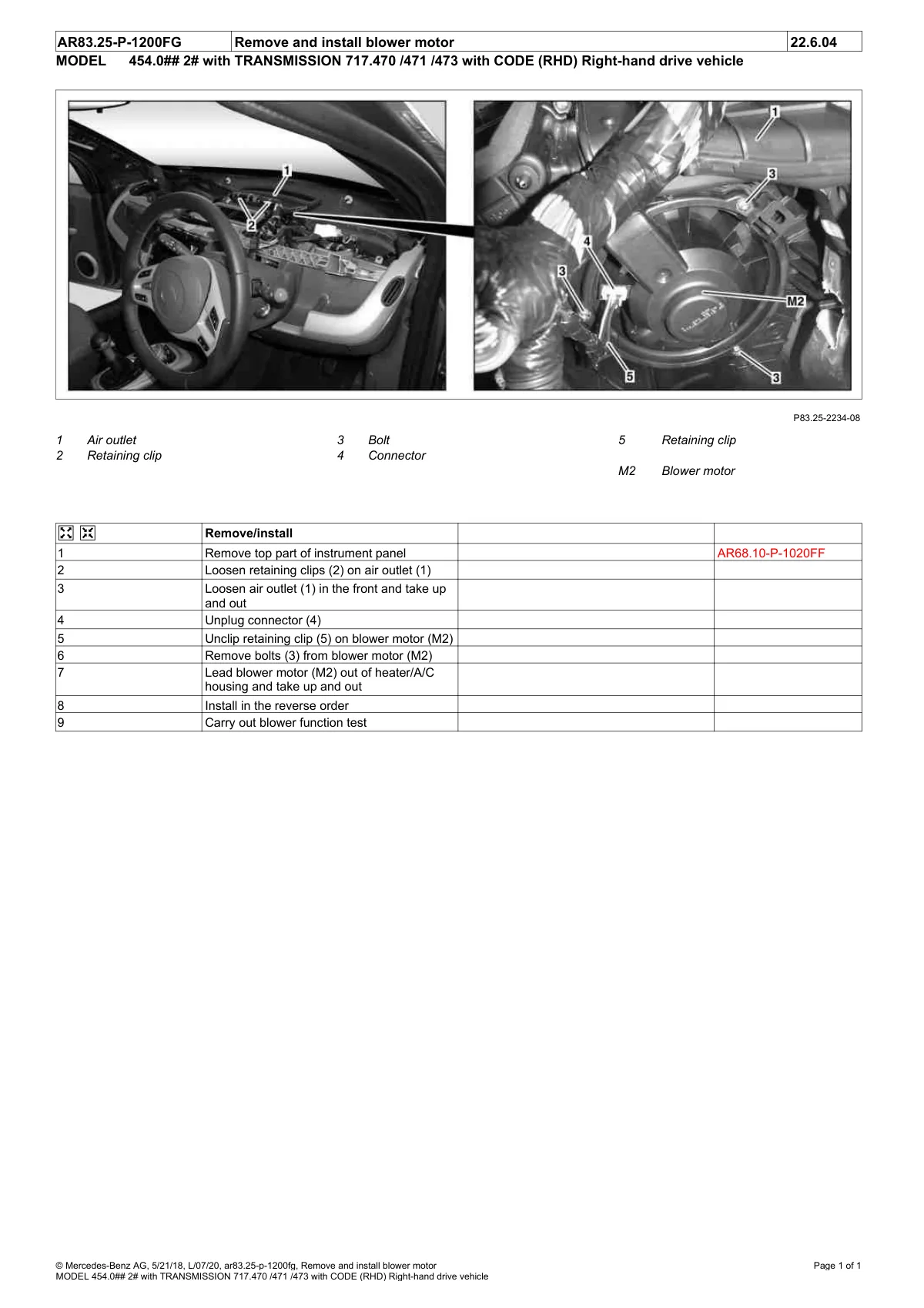

Blower motor removal and installation procedure for 454 chassis with numbered callouts showing air outlet, retaining clips, bolts, connector, and motor location.

Two photos showing blower motor location and removal steps with 9 numbered callouts in HVAC housing area.
