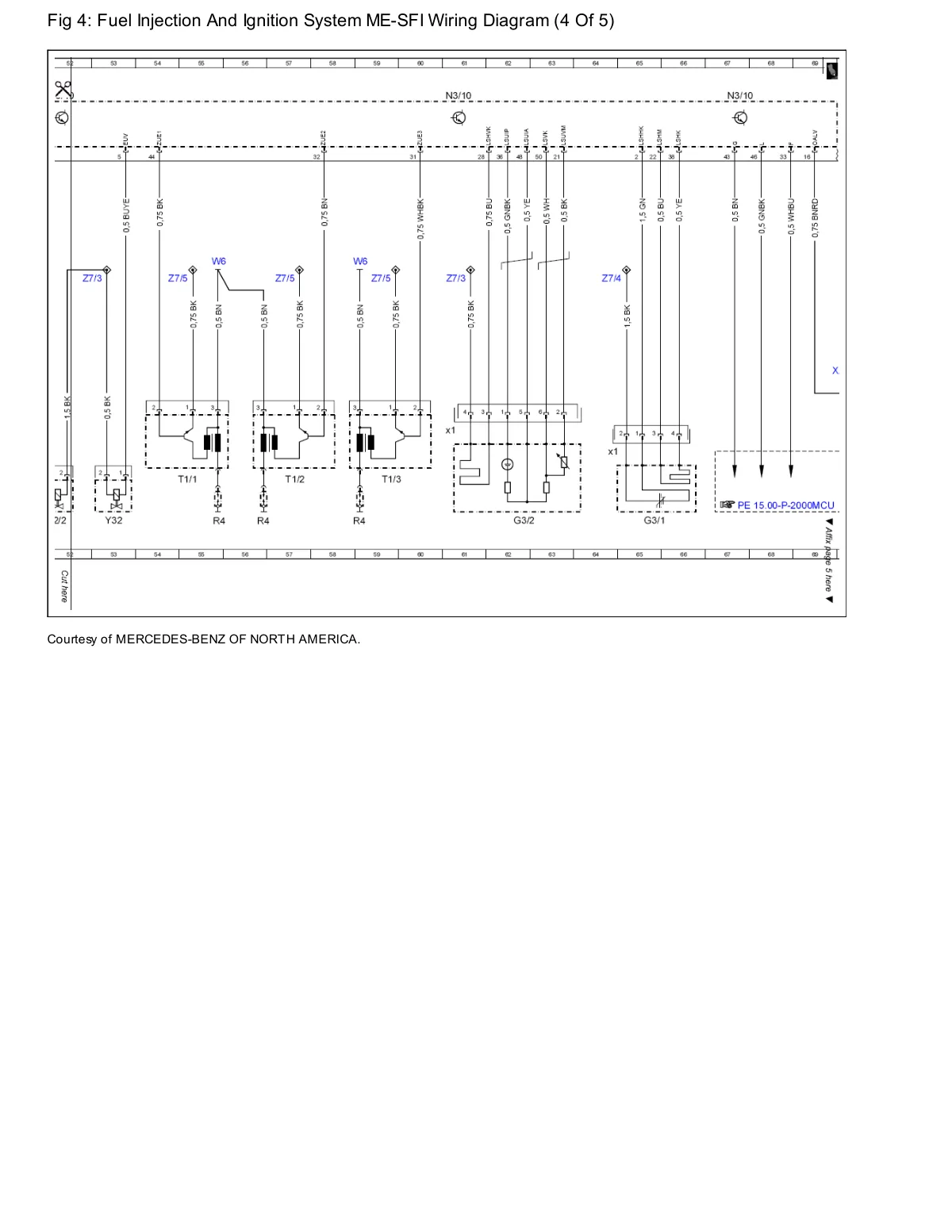

ME-SFI fuel injection and ignition system wiring diagram page 4 of 5, showing injector circuits, ignition coils, and control module connections.

Wiring schematic with numbered injectors T1/1-T1/3, ignition coils Z7/3-Z7/4, relays, and ECU module PE 15.00-P-2000MCU.
