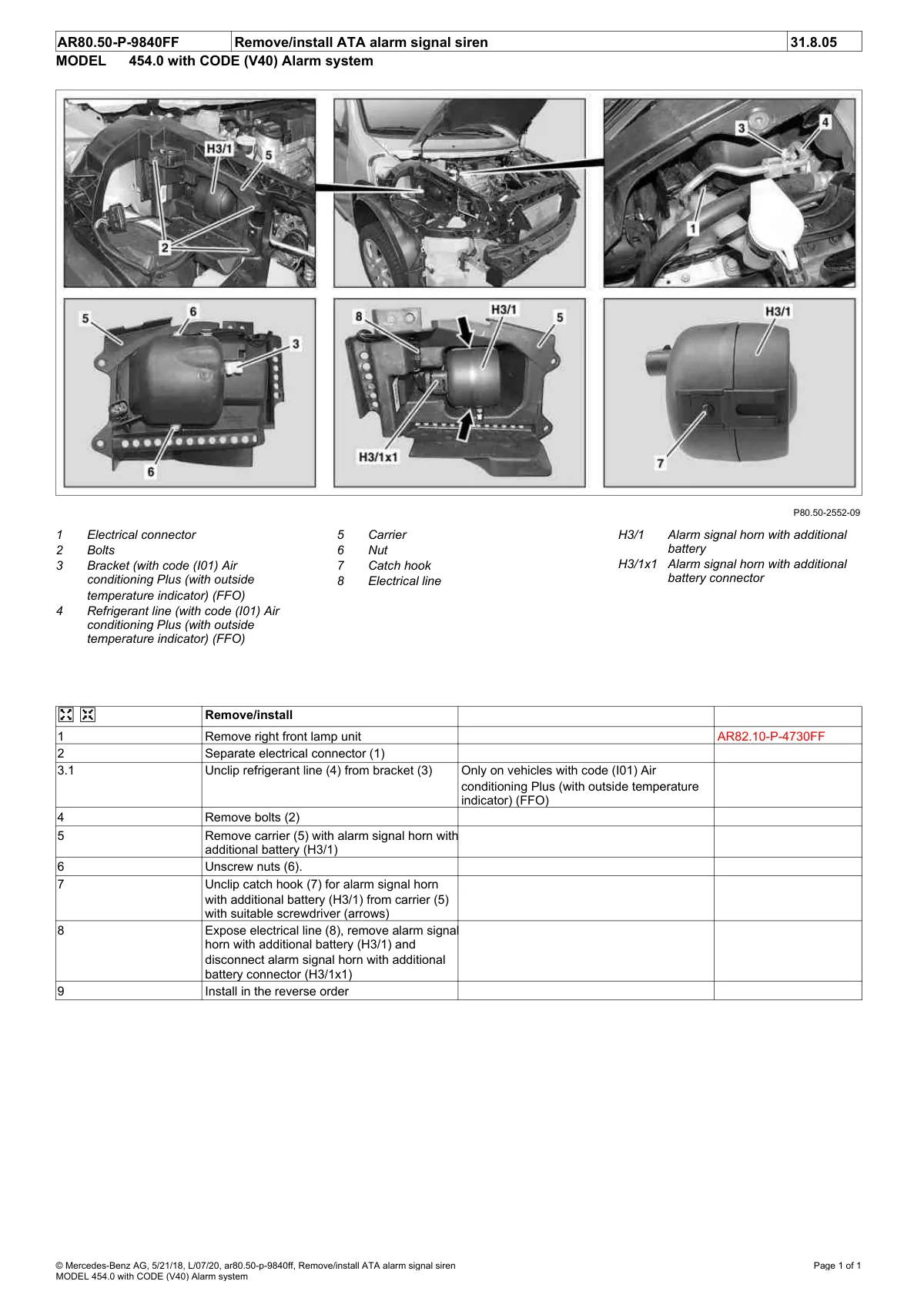

Remove/install ATA alarm signal siren on 454.0 with CODE (V40) alarm system, showing connector, carrier, bracket, and horn assembly locations.

Service procedure diagram for alarm signal horn removal and installation on Smart 454 chassis with numbered callouts and detail views.
