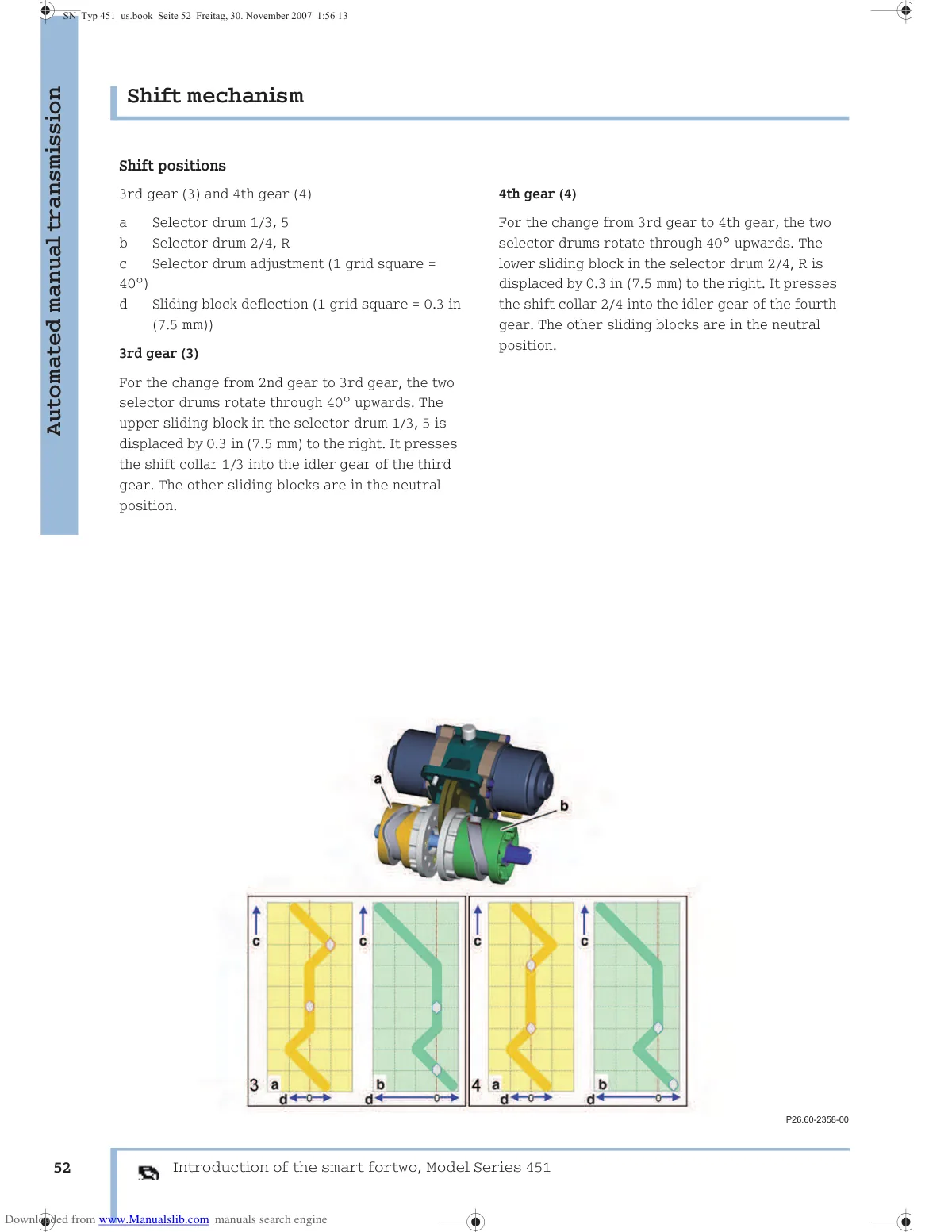

Shift mechanism selector drum positions and sliding block deflection for 3rd and 4th gears, chassis 451.

Automated manual transmission shift mechanism diagram showing selector drums and shift patterns

View full-size image ↗

See all Powertrain figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
