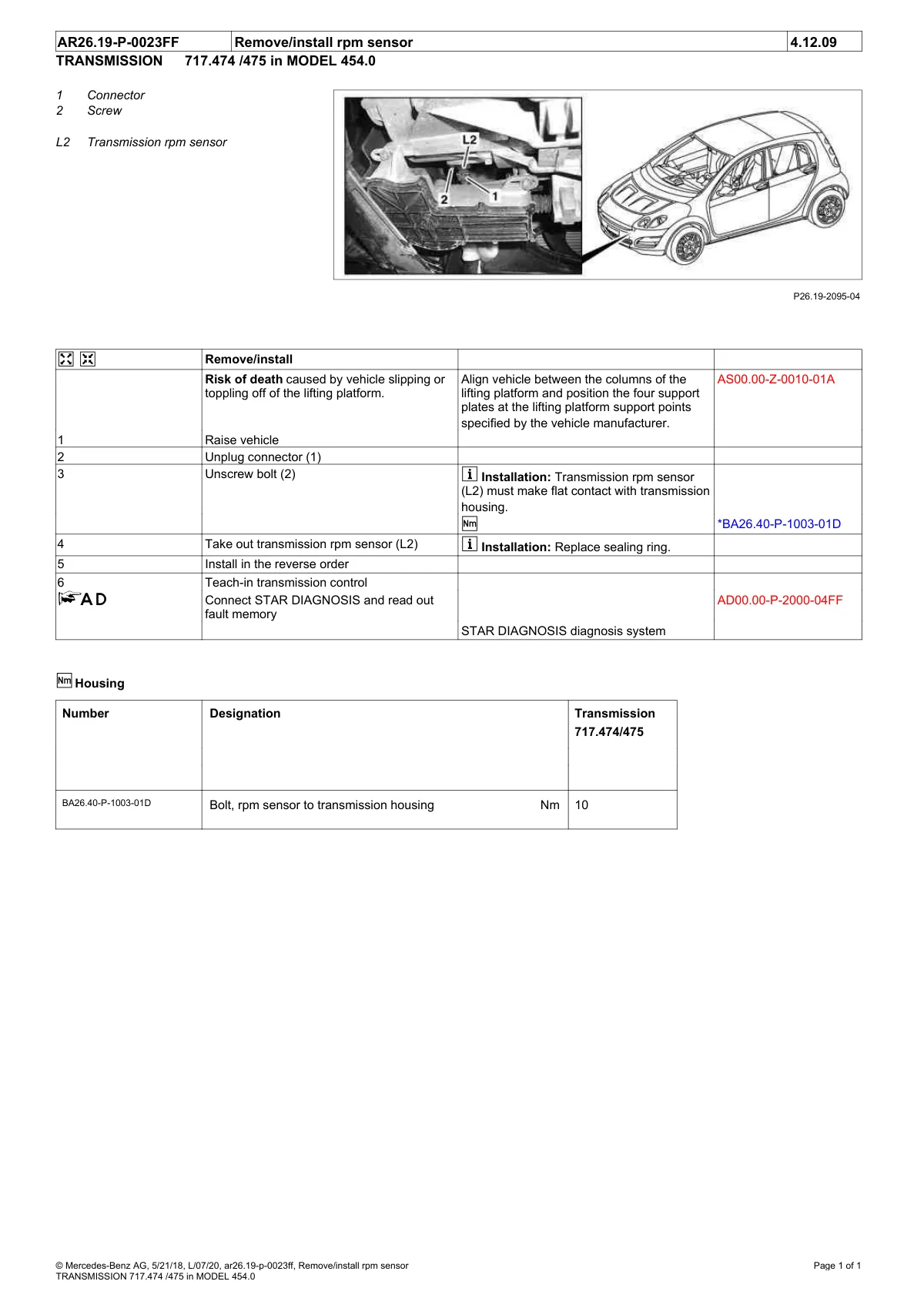

Transmission rpm sensor removal and installation procedure for 454.0 model transmission with location diagram and torque specifications.

Service manual page showing rpm sensor removal steps, transmission housing location, and bolt torque spec of 10 Nm.
