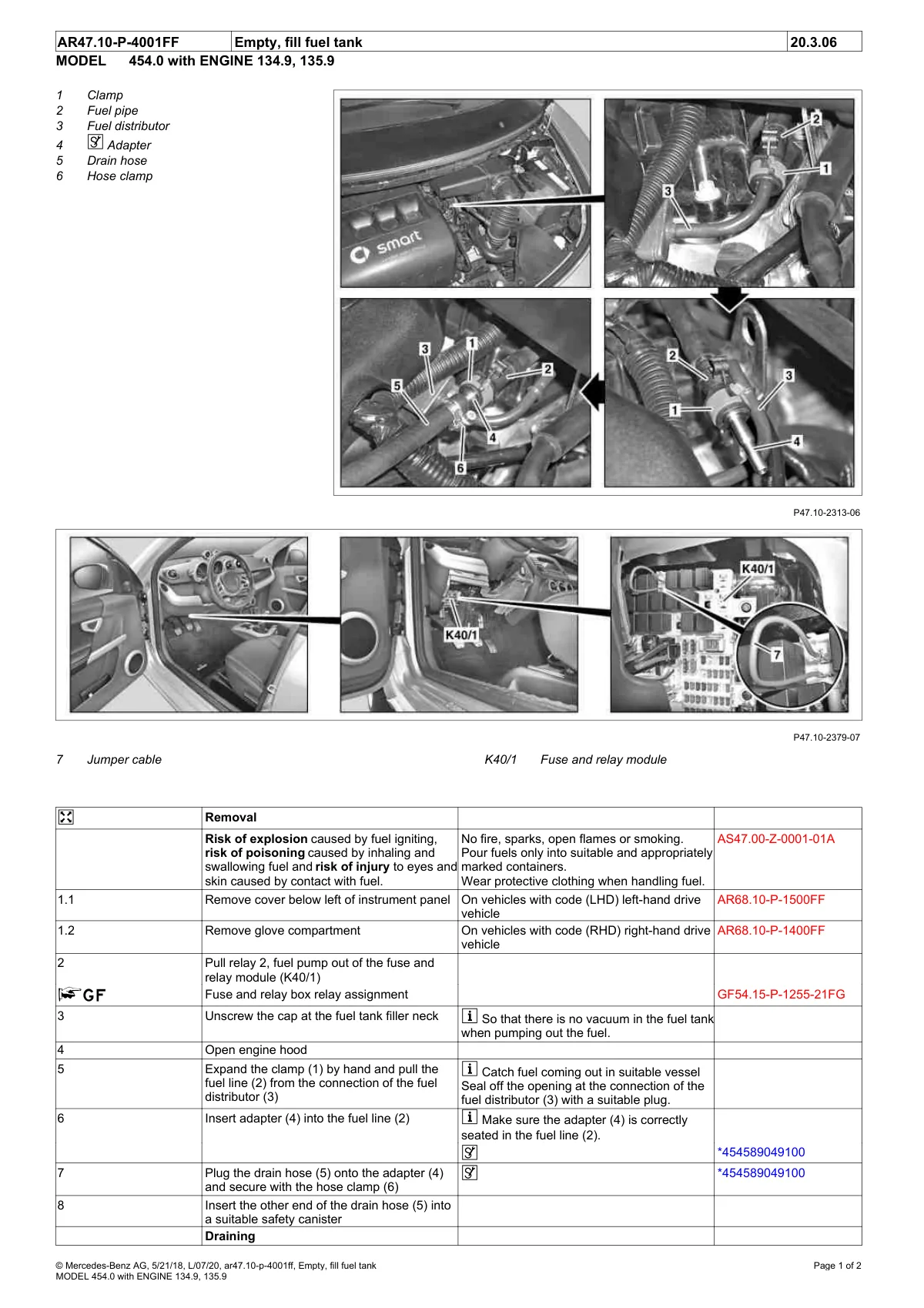

Smart 454 fuel tank emptying procedure with engine 134.9/135.9, showing fuel line disconnection points and fuse module location.

Fuel system service procedure with numbered callouts on engine bay and interior fuse box images.
