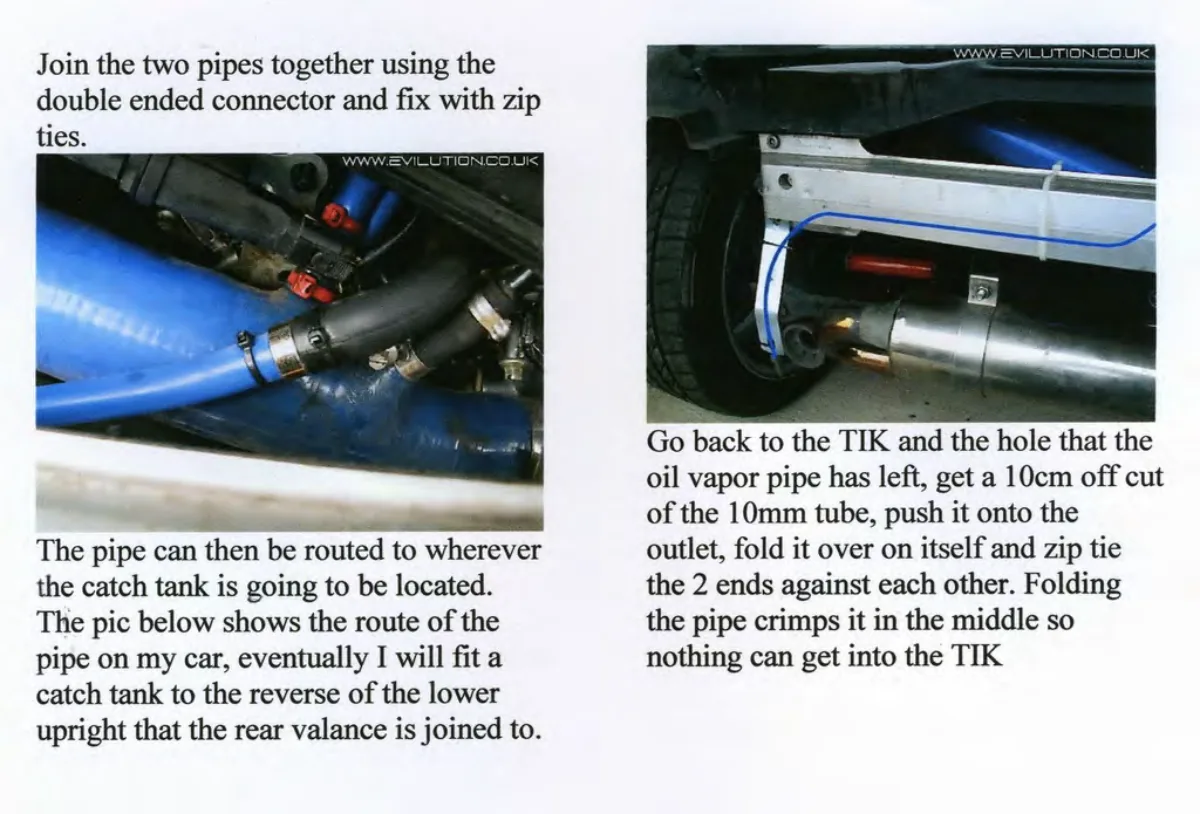

Oil vapor pipe connection procedure using double-ended connector and routing to catch tank installation on Smart 450/451.

Two photos showing blue oil vapor pipe connection with double-ended connector and routing near rear suspension area.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
