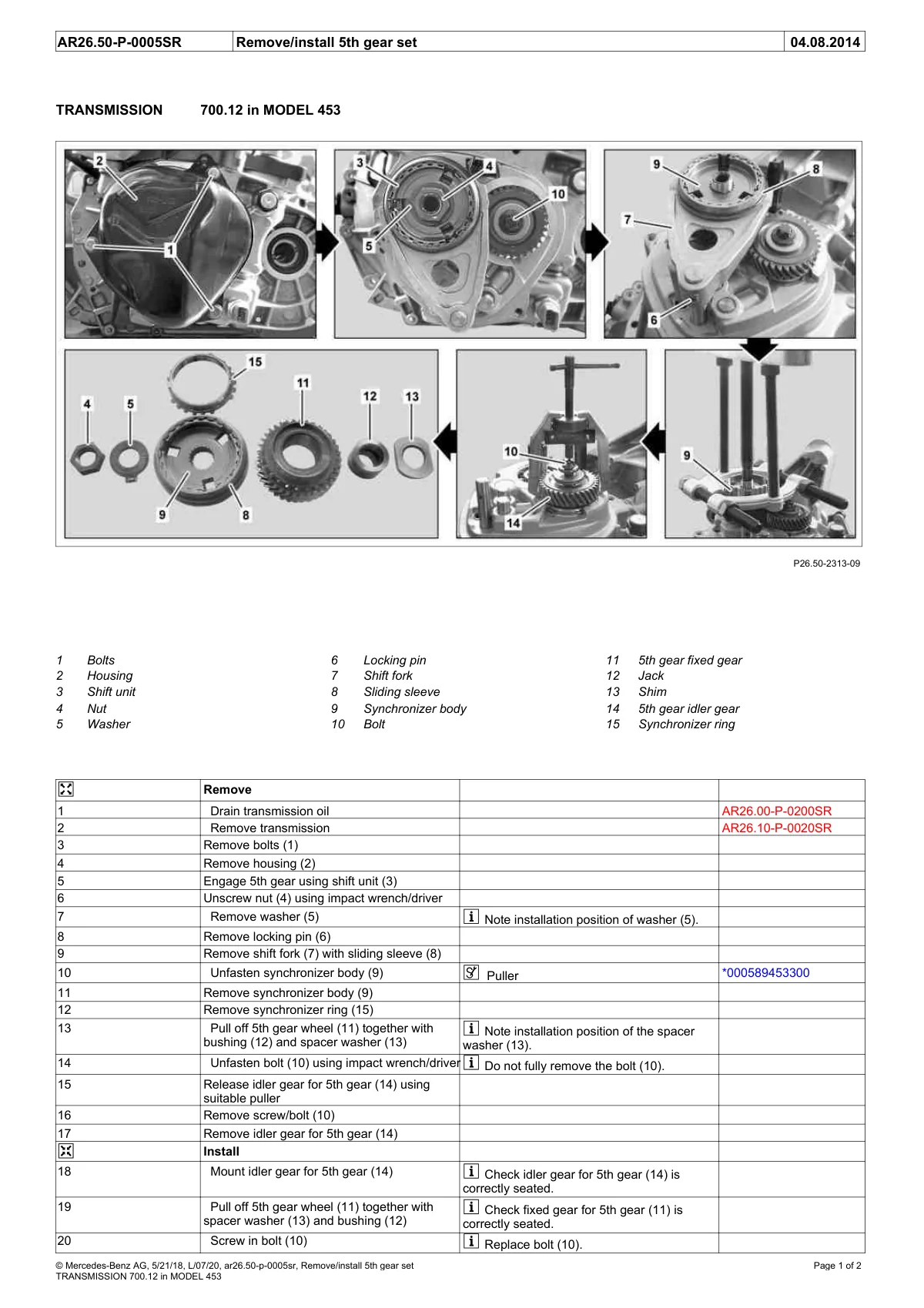

5th gear set removal/installation procedure for 700.12 transmission in chassis 453 with numbered callouts and component breakdown.

Exploded view of 5th gear transmission components with labeled parts and step-by-step removal procedure table.

View full-size image ↗

Chassis: Fortwo / Forfour (453)
System: Powertrain · Transmission
Figure type: Exploded view
Source: 2014-2024 Smart Fortwo 453 Workshop Manual, page 1386 Open manual →
Callouts: 15 numbered callouts visible on the figure

Parts referenced

Download image Ask SmartDiag-AI

transmissionexploded viewcallout numberedservice procedure
