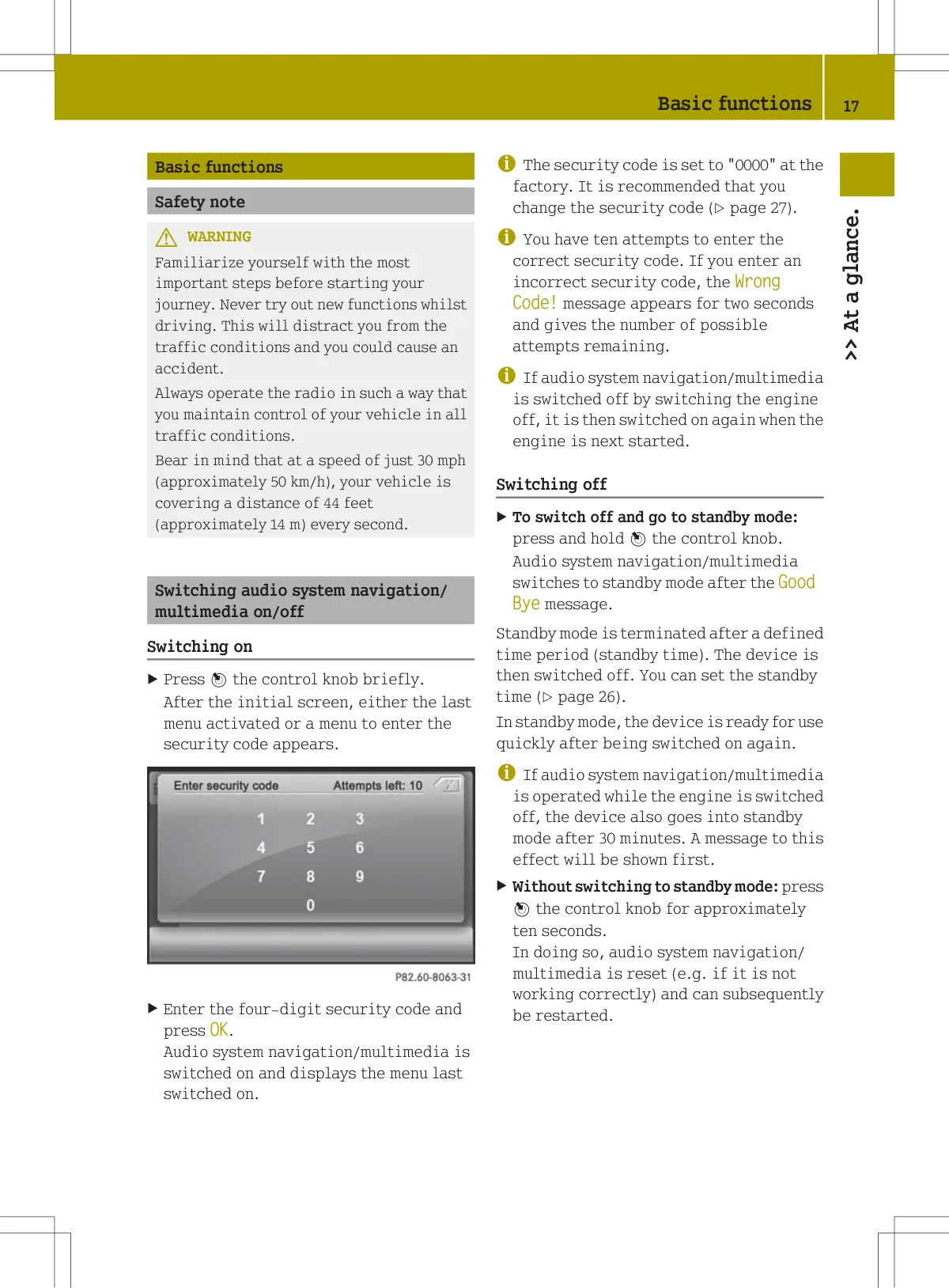

Audio system security code entry procedure with numeric keypad and switching on/off instructions for Smart infotainment system.

Security code entry screen with numbered keypad 0-9, switching on/off procedures, and safety warnings.
