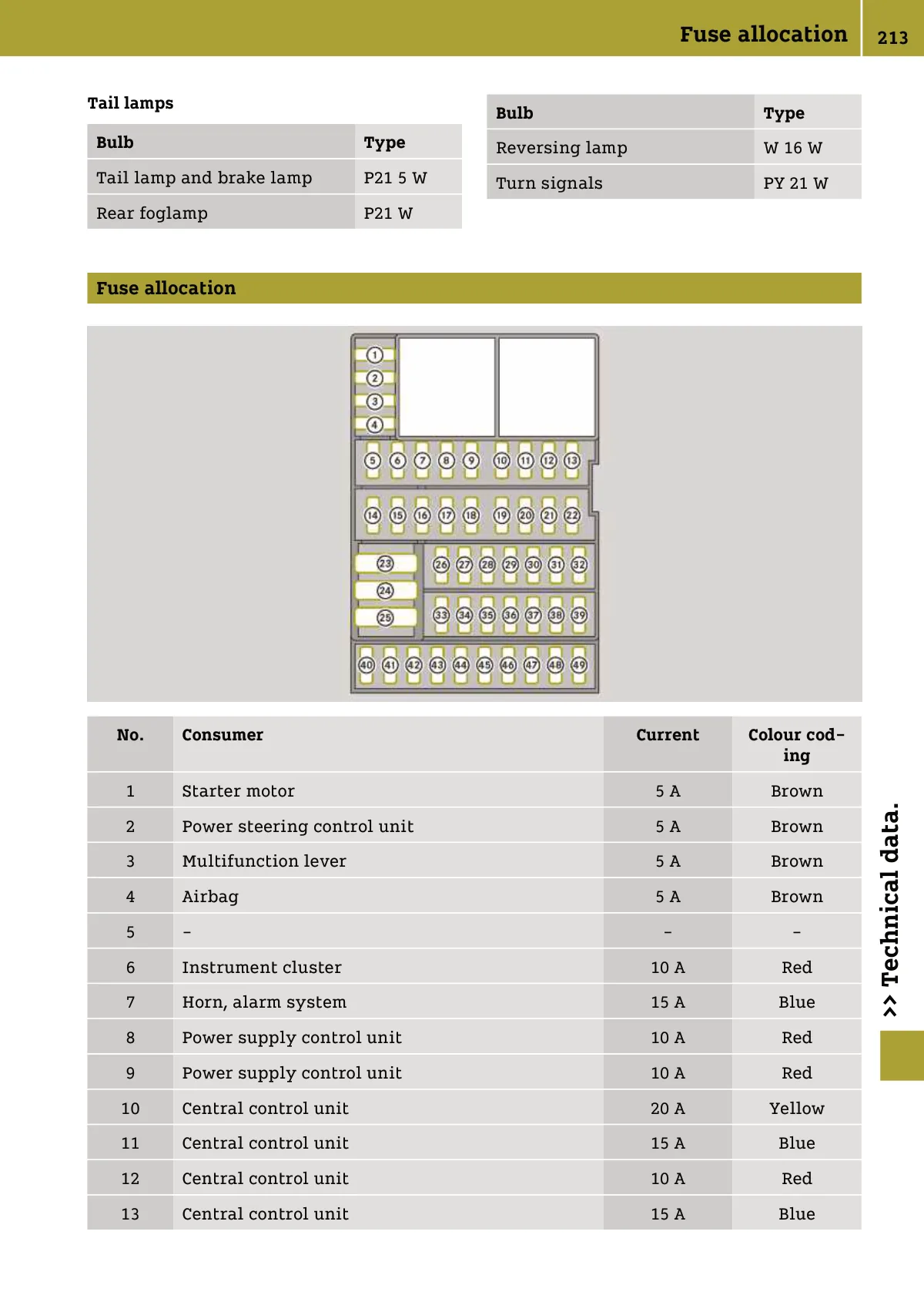

Fuse allocation chart showing fuse box layout with numbered positions 1-49 and consumer circuits with amperage ratings.

Fuse allocation diagram with numbered fuse positions and table listing consumer circuits, current ratings, and color codes.
