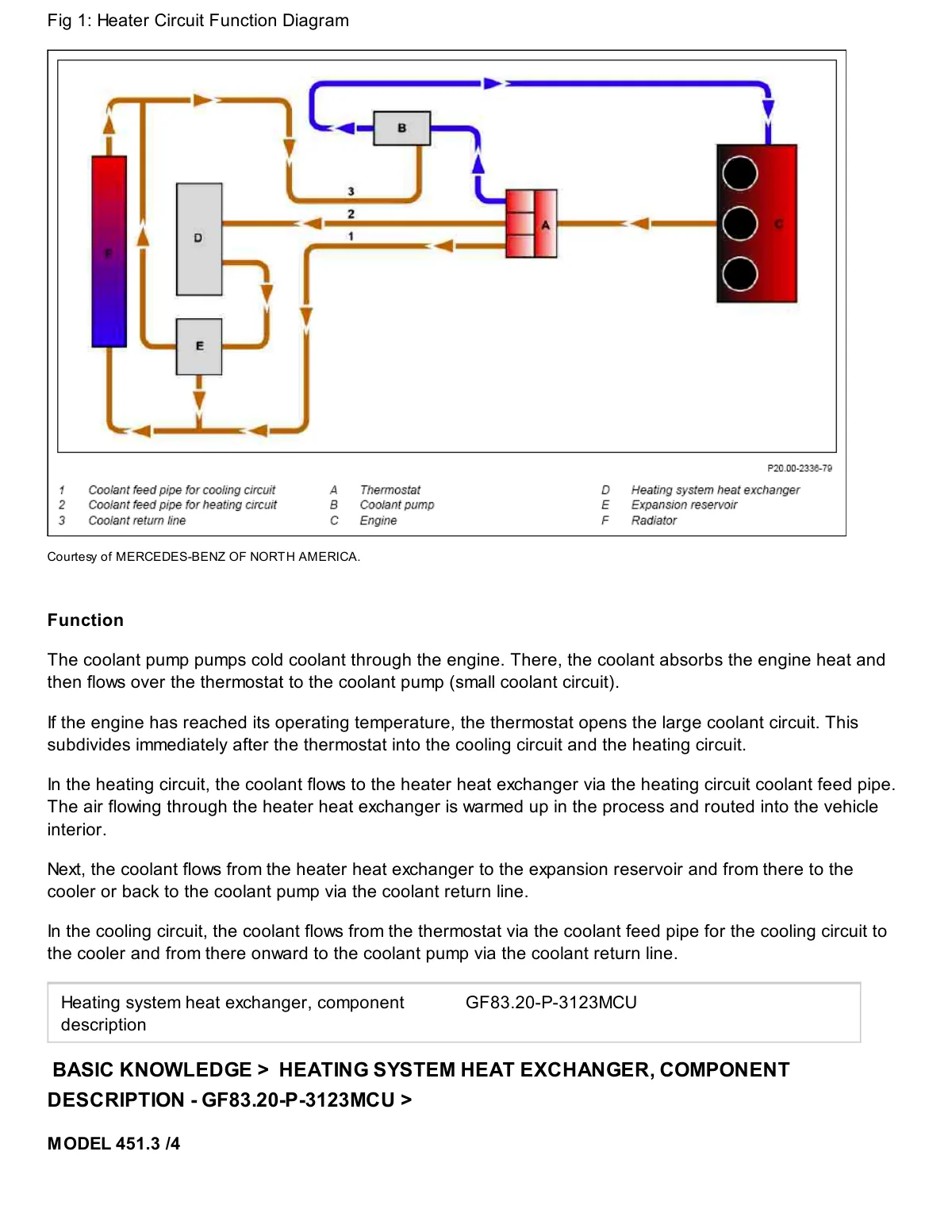

Heater circuit function diagram showing coolant flow through engine, thermostat, heat exchanger, and expansion reservoir on 451.3/4 chassis.
