Smart Media-System file format requirements, partitioning standards, and media source selection interface for USB, SD, and Bluetooth playback.

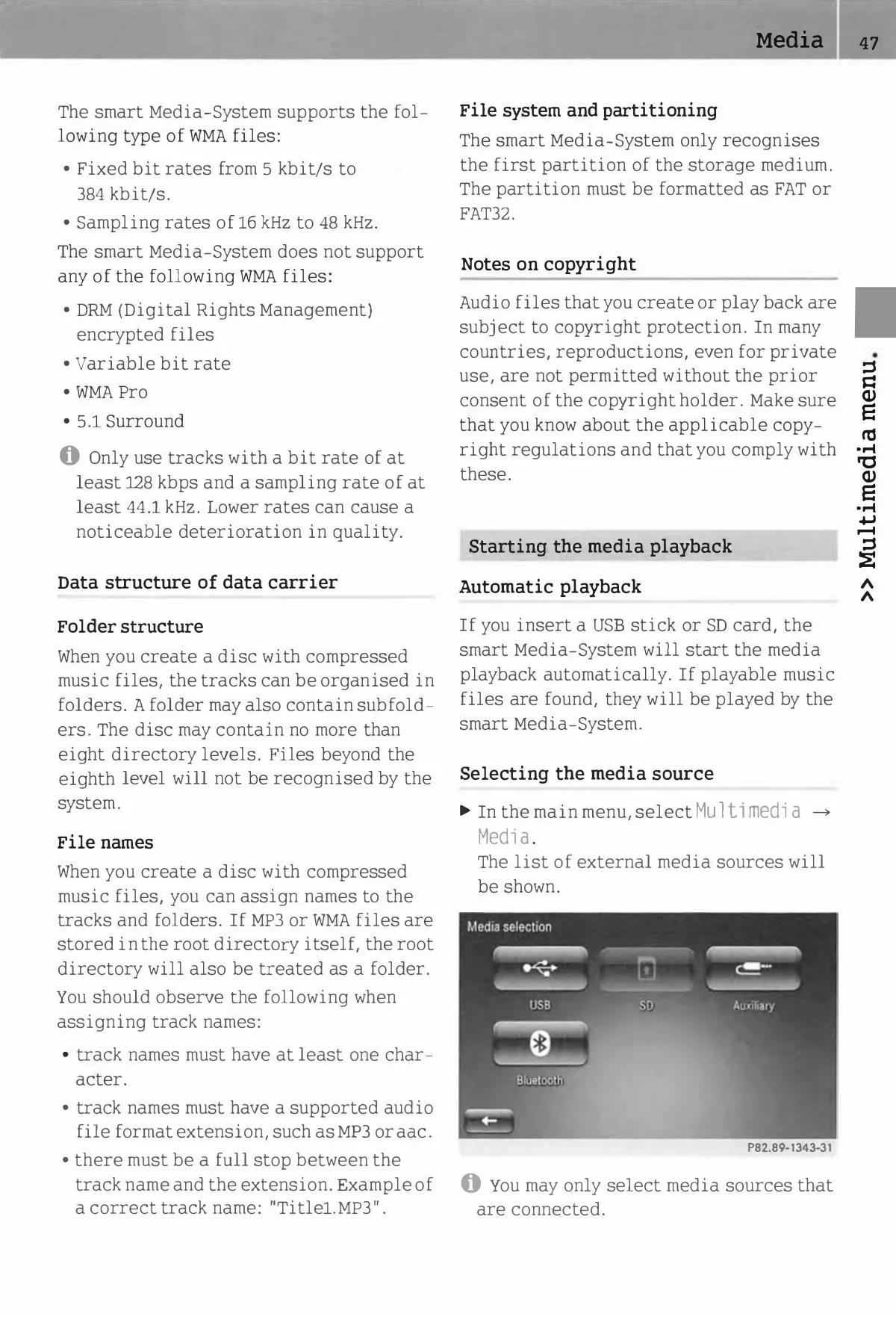

Text page describing WMA file support, FAT32 partitioning, copyright notes, and media selection menu with USB, SD, Auxiliary, and Bluetooth source buttons.
