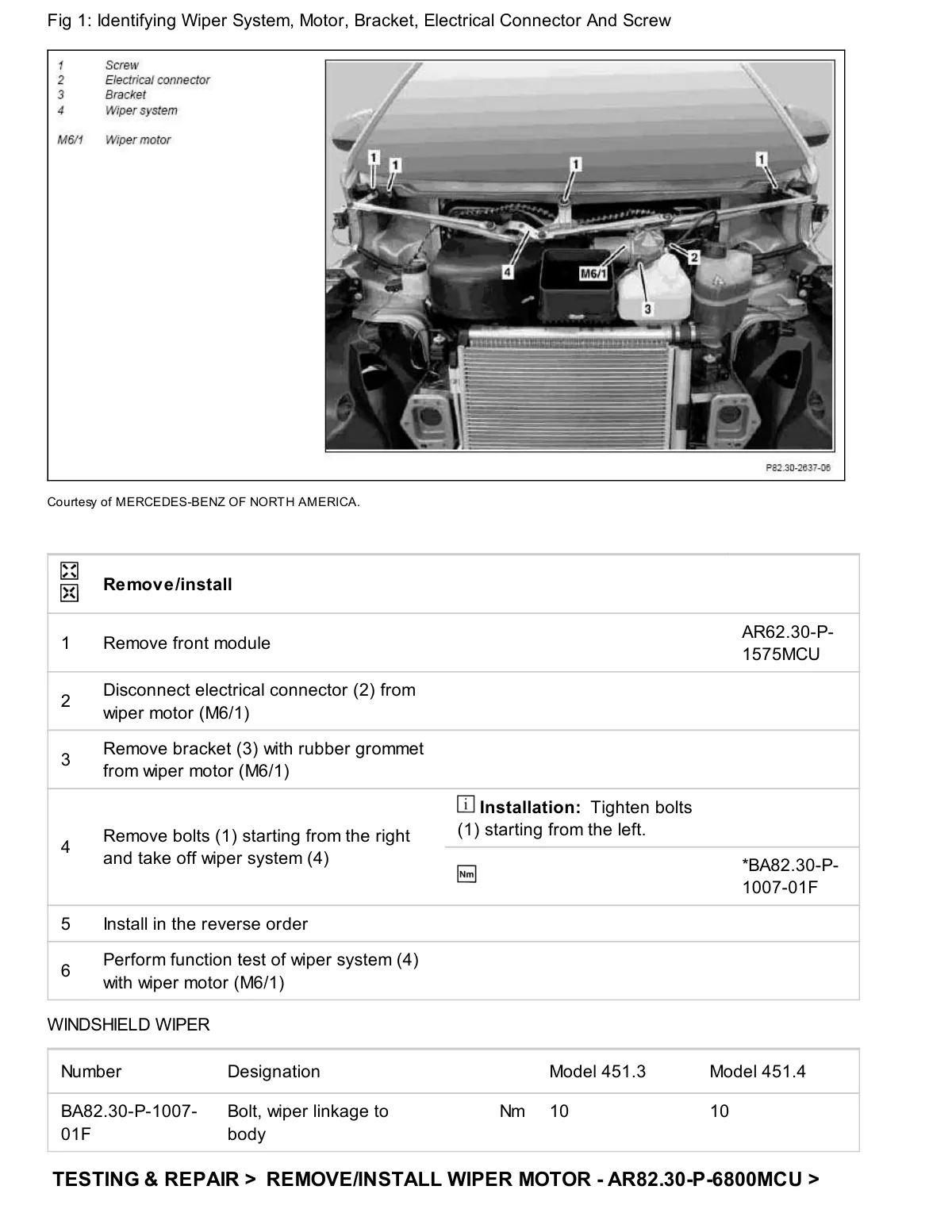

Windshield wiper motor, bracket, connector and screw identification with removal/installation procedure for Smart fortwo 451.

Engine bay diagram showing wiper motor location with numbered callouts and service steps
