On-board electrical system and power supply overview for smart fortwo electric drive 451, including high-voltage and 12V systems.

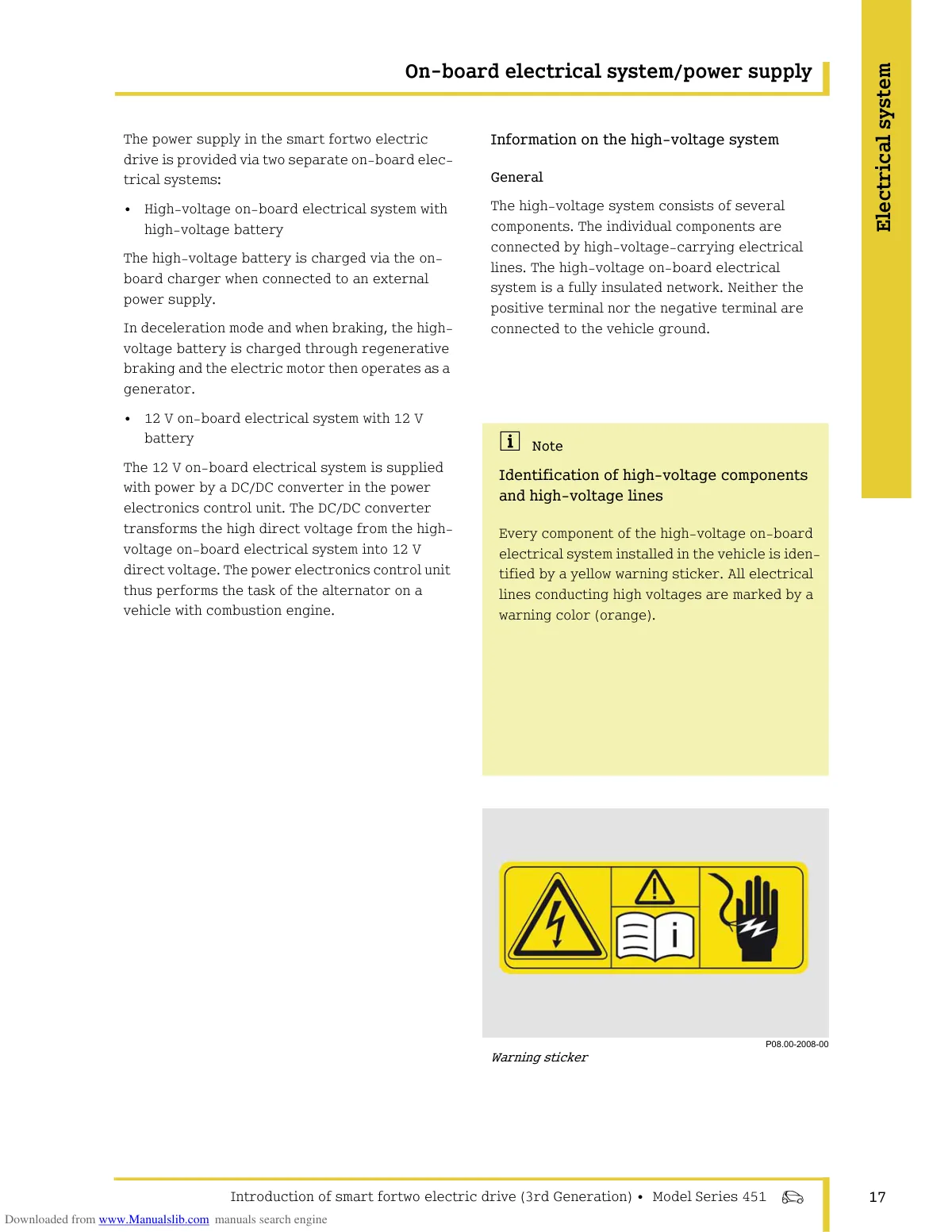

Text page describing electrical power systems and high-voltage safety warning sticker with hazard symbols.
