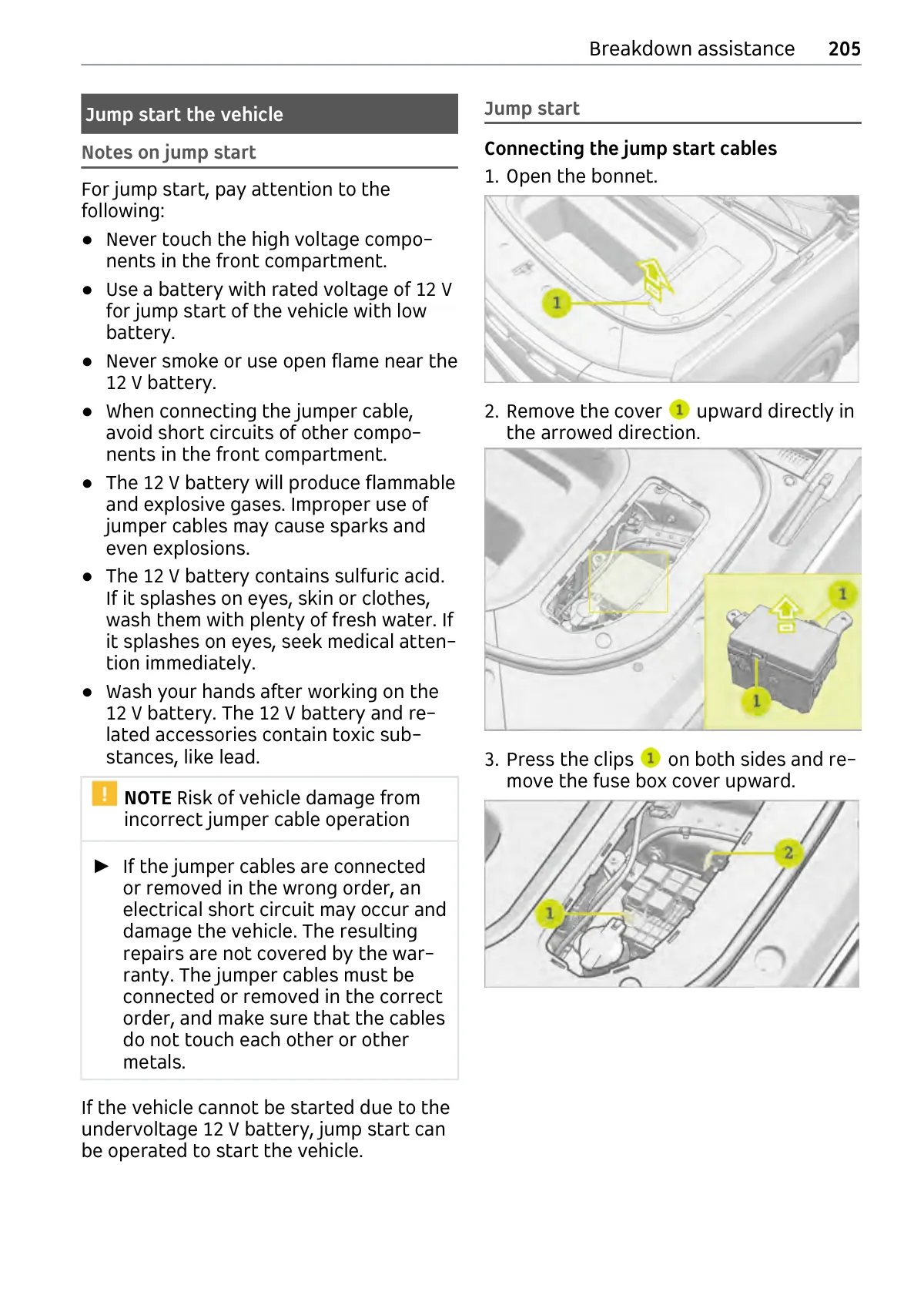

Jump start procedure for Smart vehicle: opening bonnet, removing battery cover, and accessing fuse box.

Three numbered steps showing bonnet opening, battery cover removal, and fuse box cover access with yellow callout indicators.
