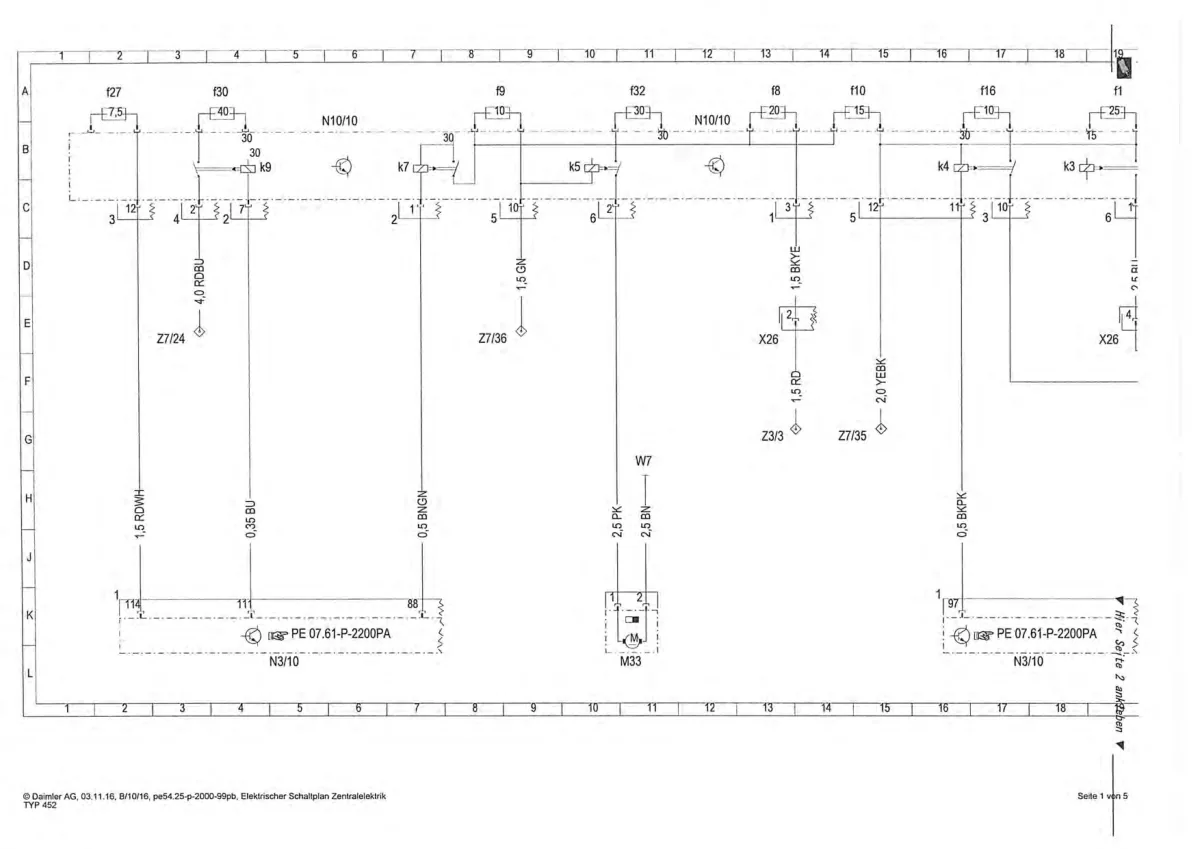

Smart 452 Roadster electrical schematic central wiring diagram with fuse modules N3/10 and M33, relays, and connector pathways.
