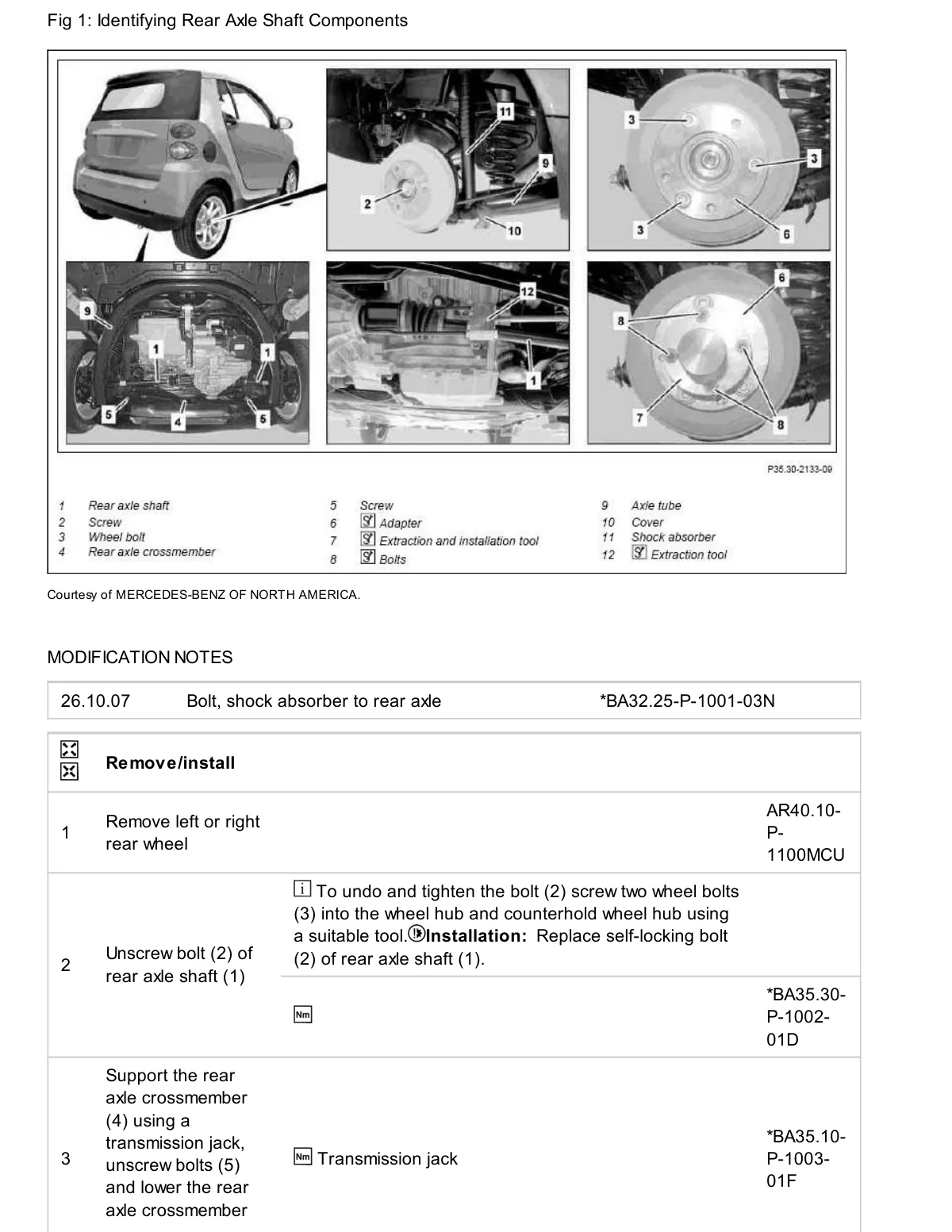

Fig 1 identifying rear axle shaft components with exploded views and callout labels for Smart 450/451/452/454.

Diagram showing rear axle shaft parts with numbered callouts and removal/installation procedure steps.
