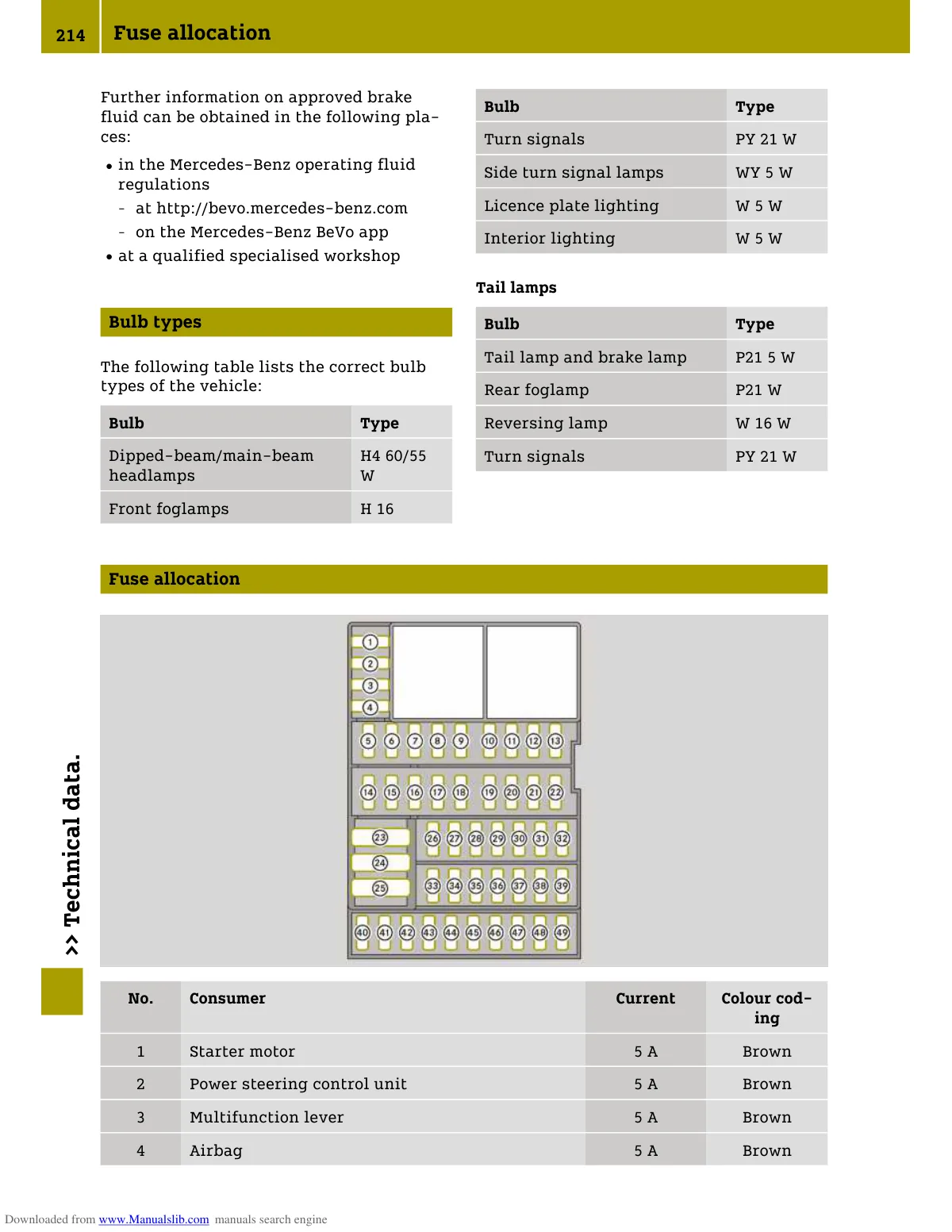

Fuse allocation chart for Smart Fortwo 453 with bulb types, fuse box diagram, and consumer circuit assignments.

Fuse allocation diagram showing numbered fuse positions and table listing fuse consumers with current ratings and color codes.
