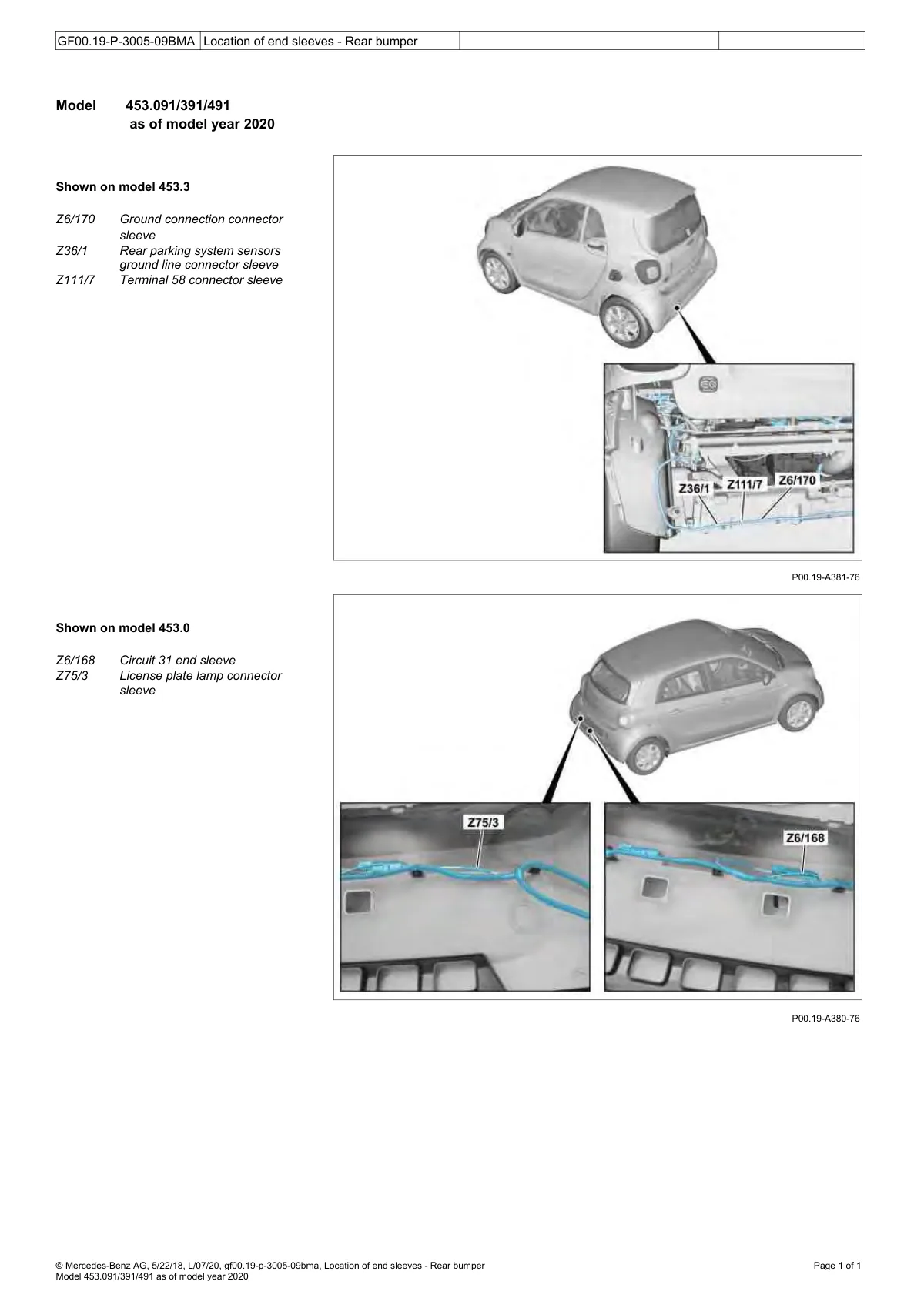

Rear bumper end sleeve locations for chassis 453 models, showing connector sleeves and wiring routes.

Smart Fortwo 453 rear bumper with labeled connector sleeves Z6/170, Z36/1, Z111/7, Z75/3, and Z6/168 identified on close-up detail photos.
