Diagnostic tool components and engine bay connection points for Smart 454 auxiliary heater (water heater) system.

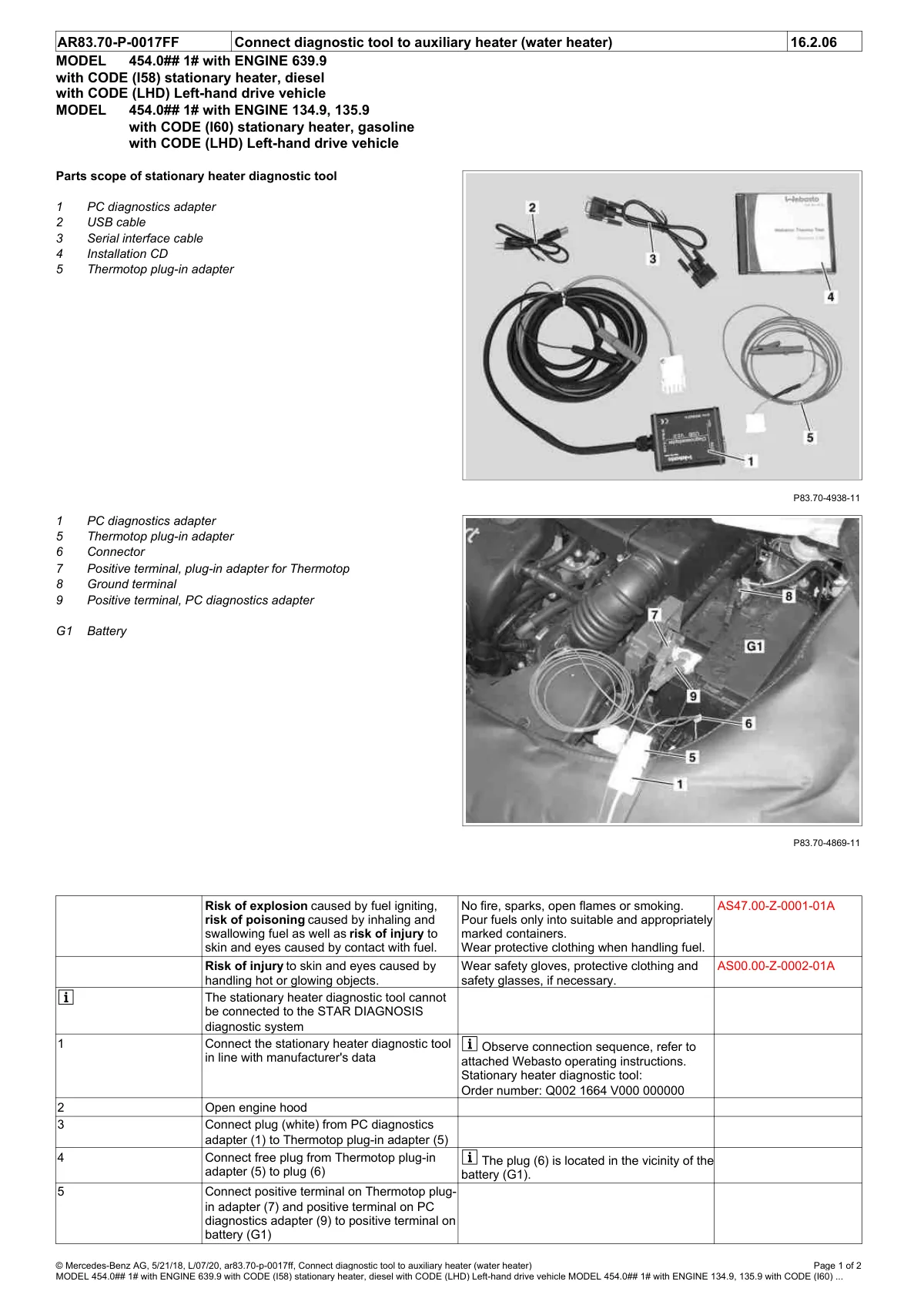

Two photos showing diagnostic adapter kit components and engine bay installation location with numbered callouts.
