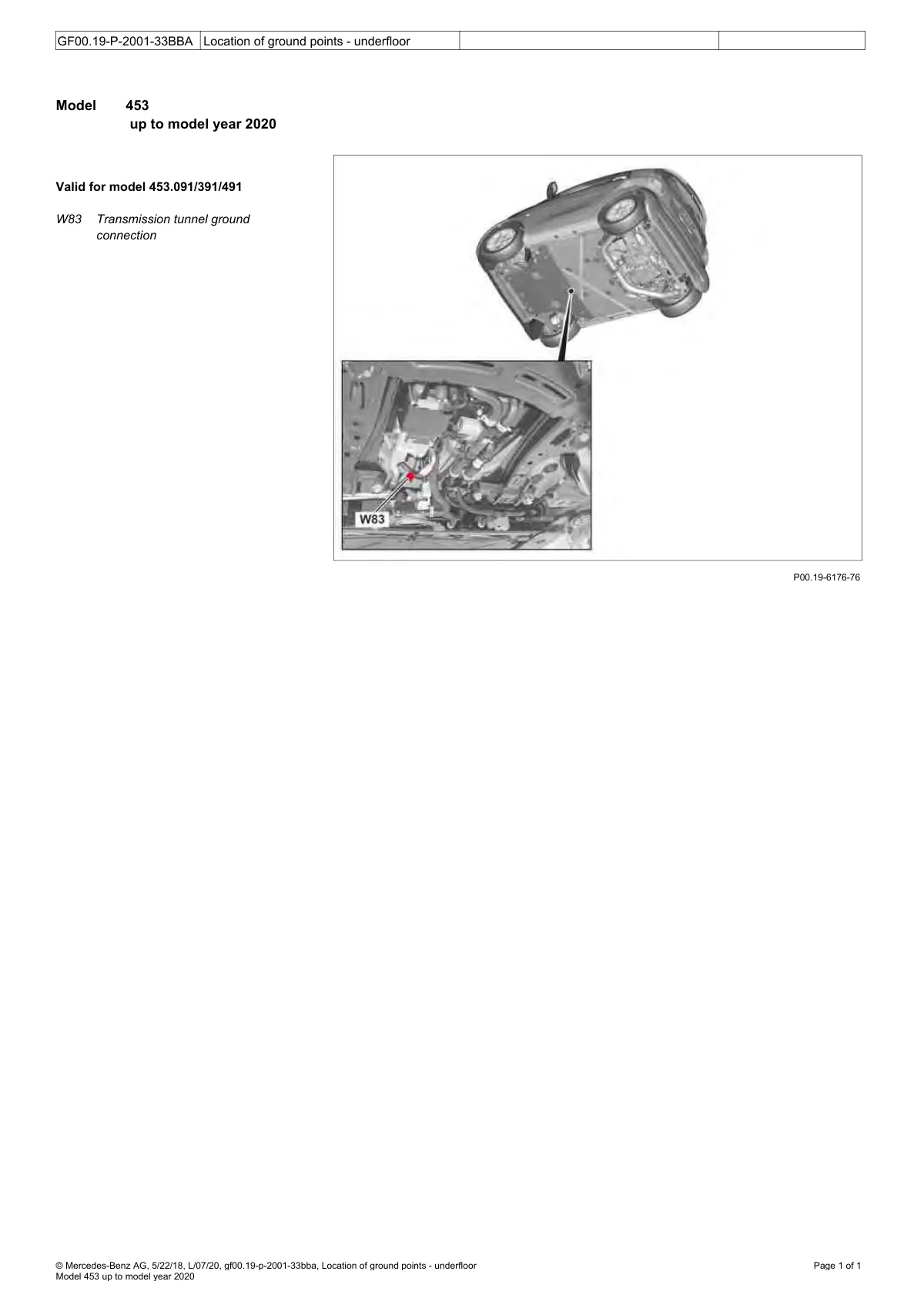

Model 453 transmission tunnel ground connection location underfloor, valid for 453.091/391/491.

Underfloor transmission tunnel ground point location diagram for Smart 453.
