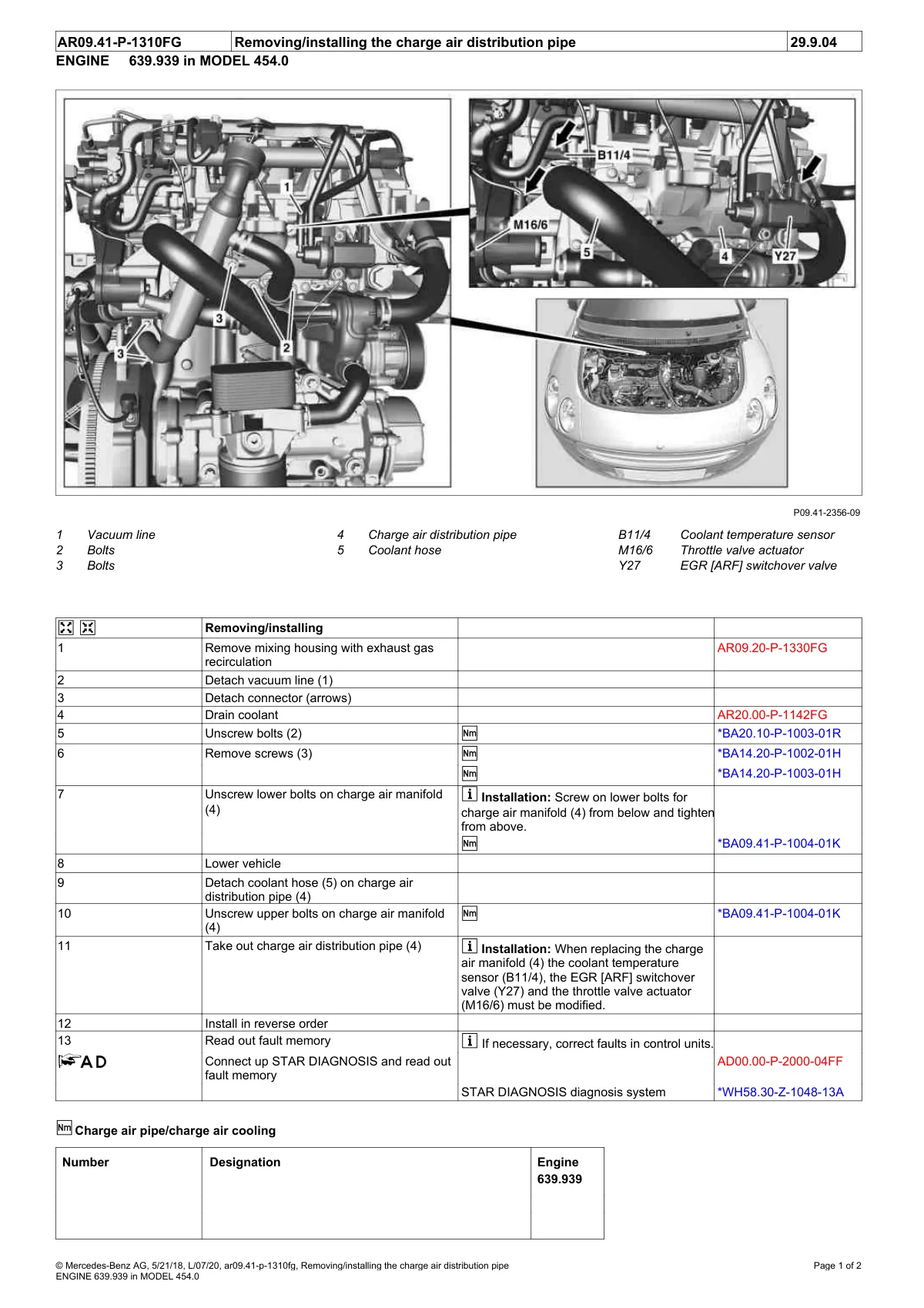

Removing and installing charge air distribution pipe on 454.0 engine with callout locations and component references.

Engine bay diagram showing charge air pipe removal procedure with numbered callouts and component labels.
