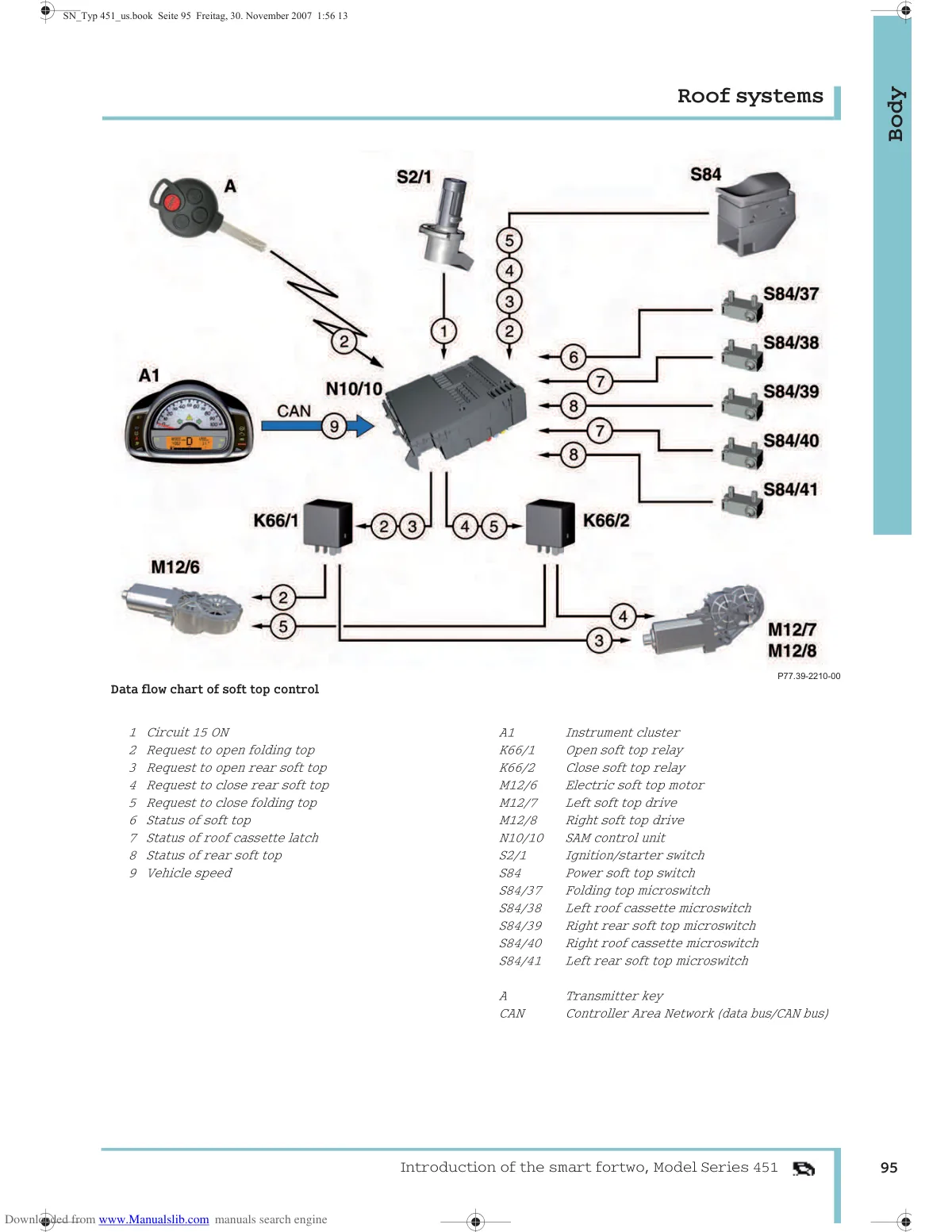

Soft top control data flow chart for smart fortwo 451 cabrio roof system with CAN bus integration.

Wiring schematic showing soft top motor, relays, switches, and SAM control unit connections.
