Alternator removal and installation procedure for Smart fortwo 450.3/4 with 160.910 and 160.920 engines, showing component location and service steps.

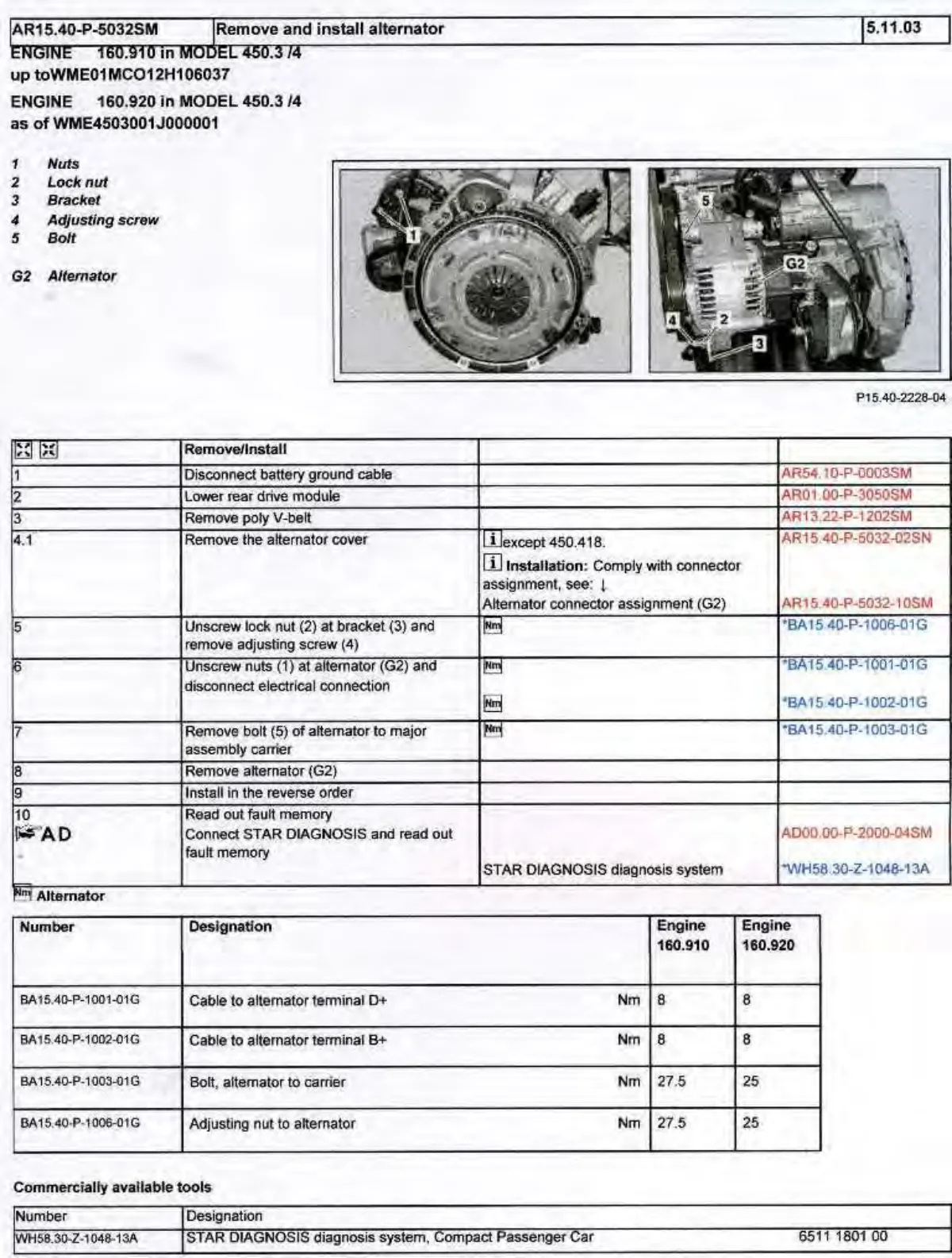

Service manual page showing alternator removal steps, two engine photographs with numbered callouts, and torque specifications table.
