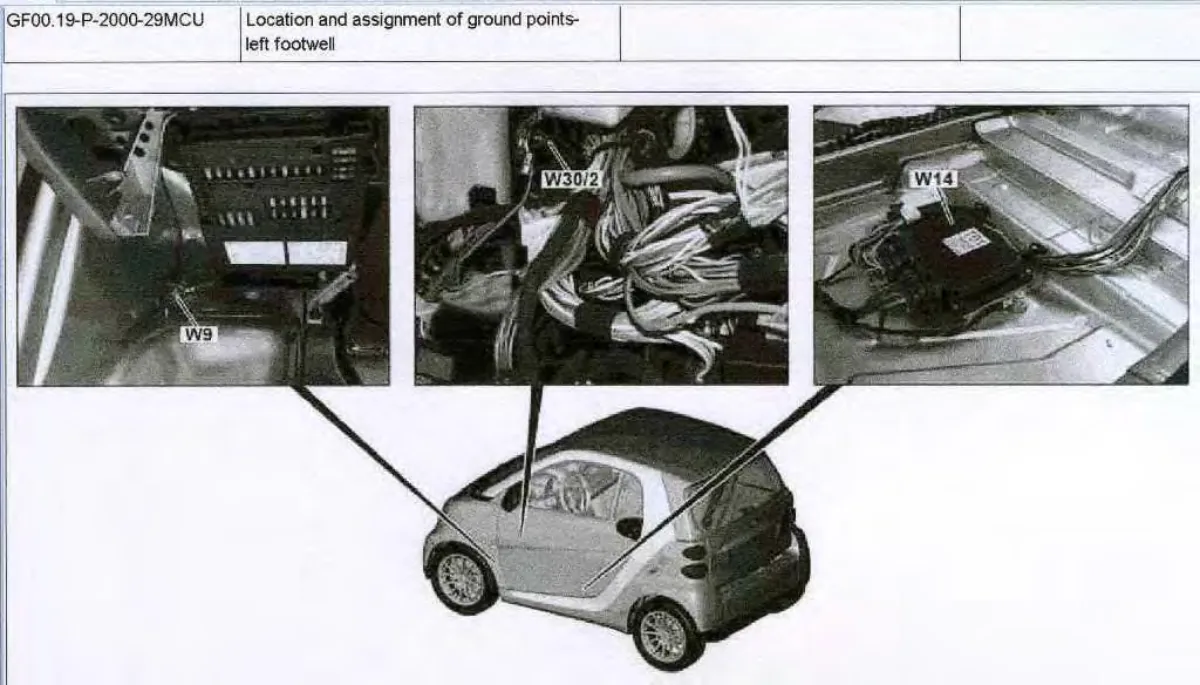

Ground point locations W9, W30/2, W14 in left footwell area of smart fortwo chassis 450/451.

Three detail photos showing ground point locations labeled W9, W30/2, and W14 with isometric vehicle diagram below.
