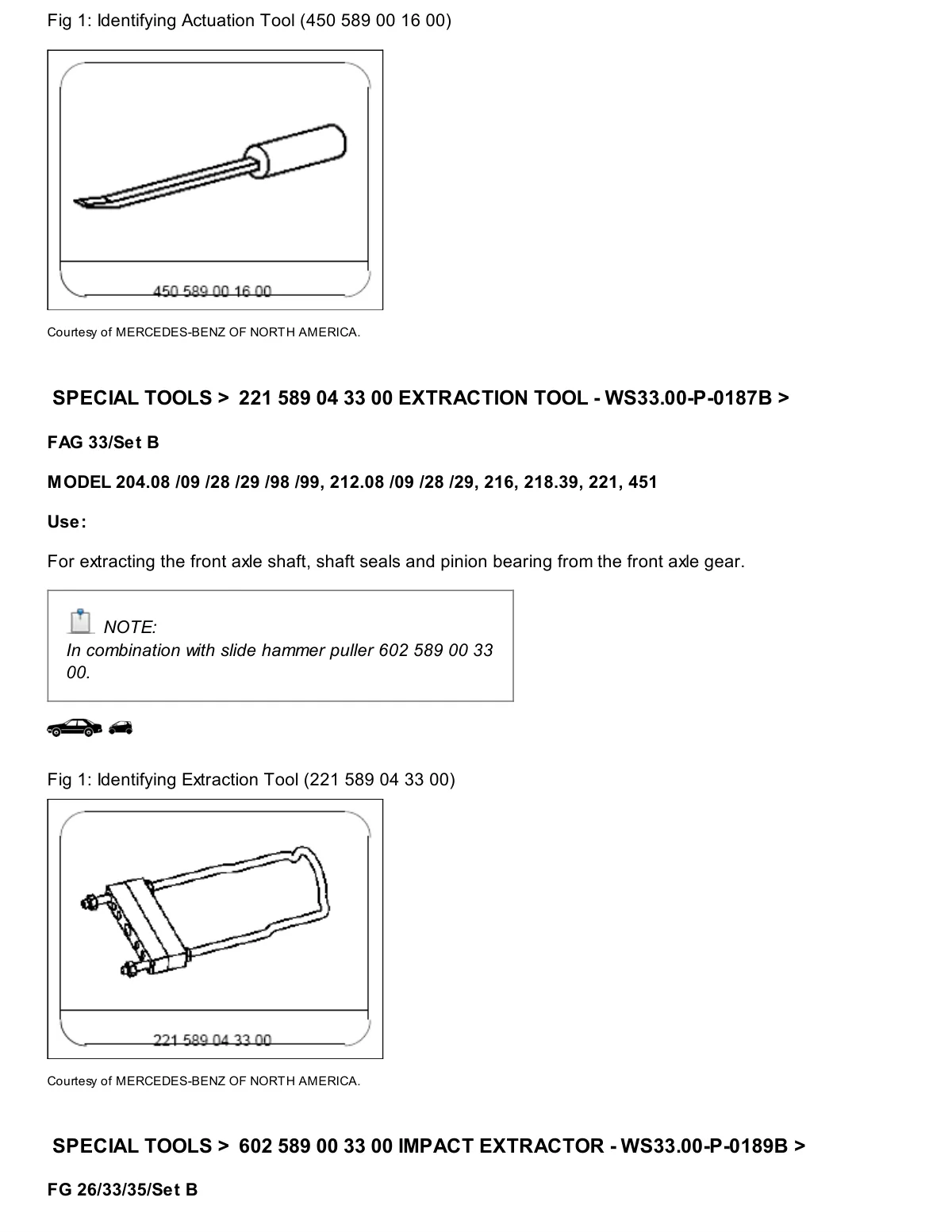

Actuation tool 450 589 00 16 00 and extraction tool 221 589 04 33 00 for front axle shaft, seals, pinion bearing removal on Smart 450/451 models.

Technical drawings of two specialized extraction tools with part numbers and identification labels.
