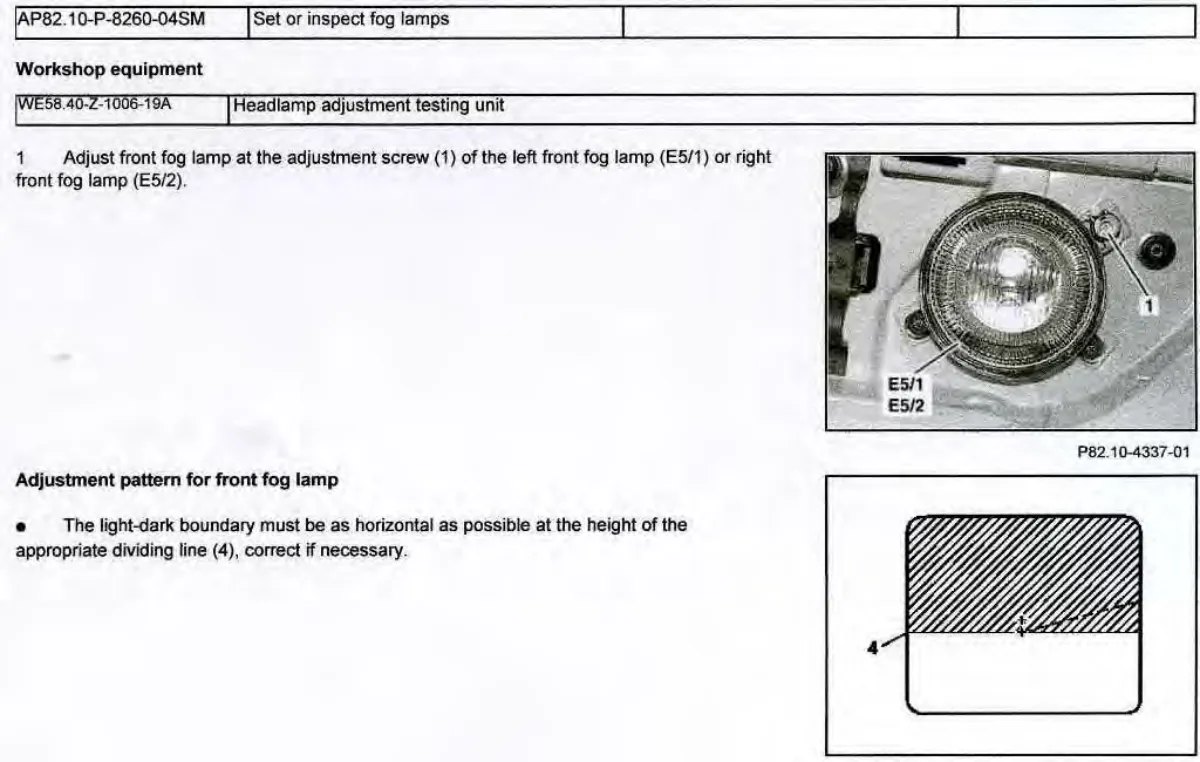

Fog lamp adjustment procedure with headlamp testing unit WE58.40-Z-1006-19A for left (E5/1) and right (E5/2) front lamps.

Fog lamp assembly with adjustment screw callout and light-dark boundary adjustment pattern diagram.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
