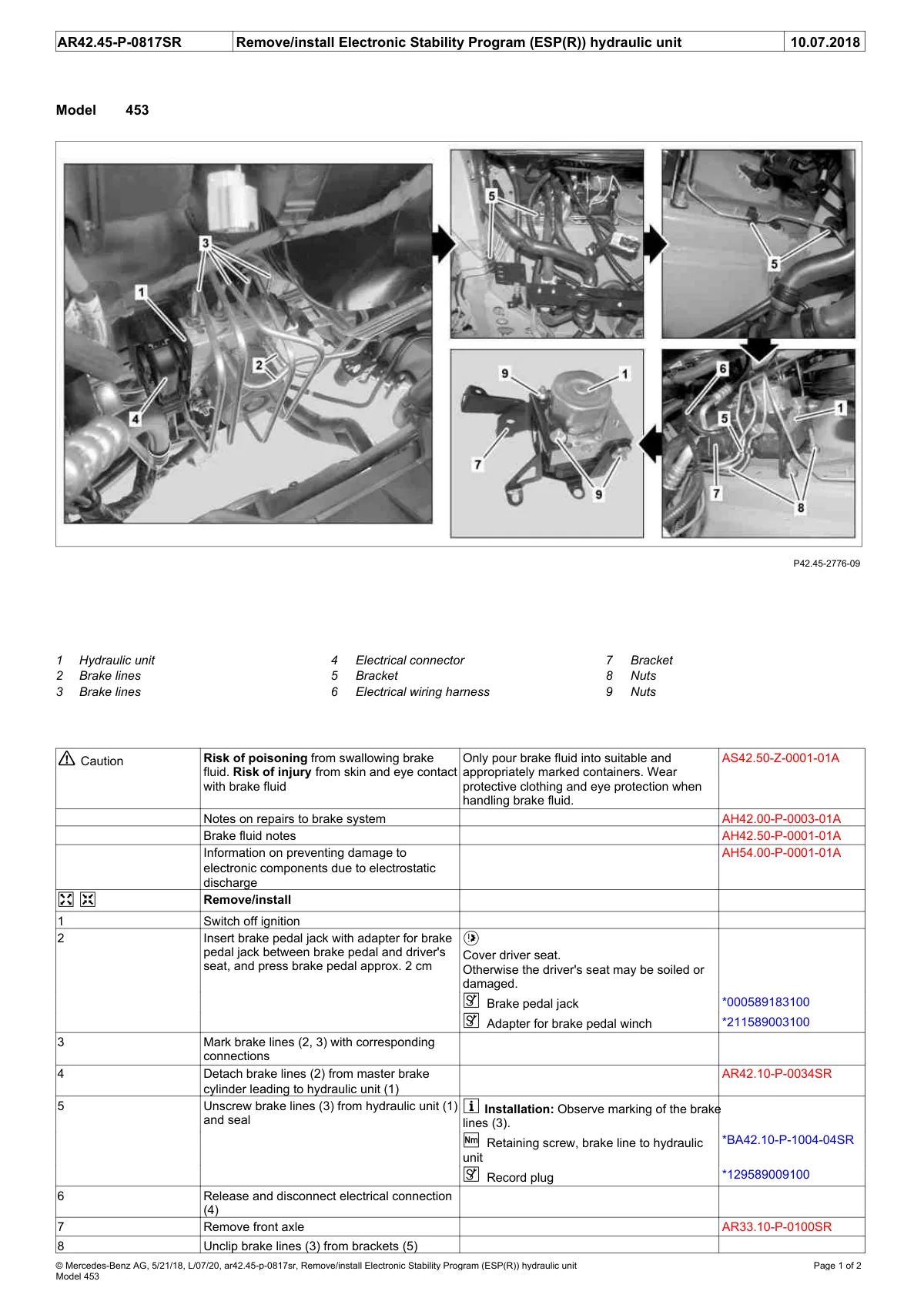

Smart 453 ESP(R) hydraulic unit removal/installation with numbered callouts identifying hydraulic lines, connectors, and mounting brackets.

Multi-panel technical diagram showing ESP hydraulic unit location and components with numbered callout labels 1-9.
