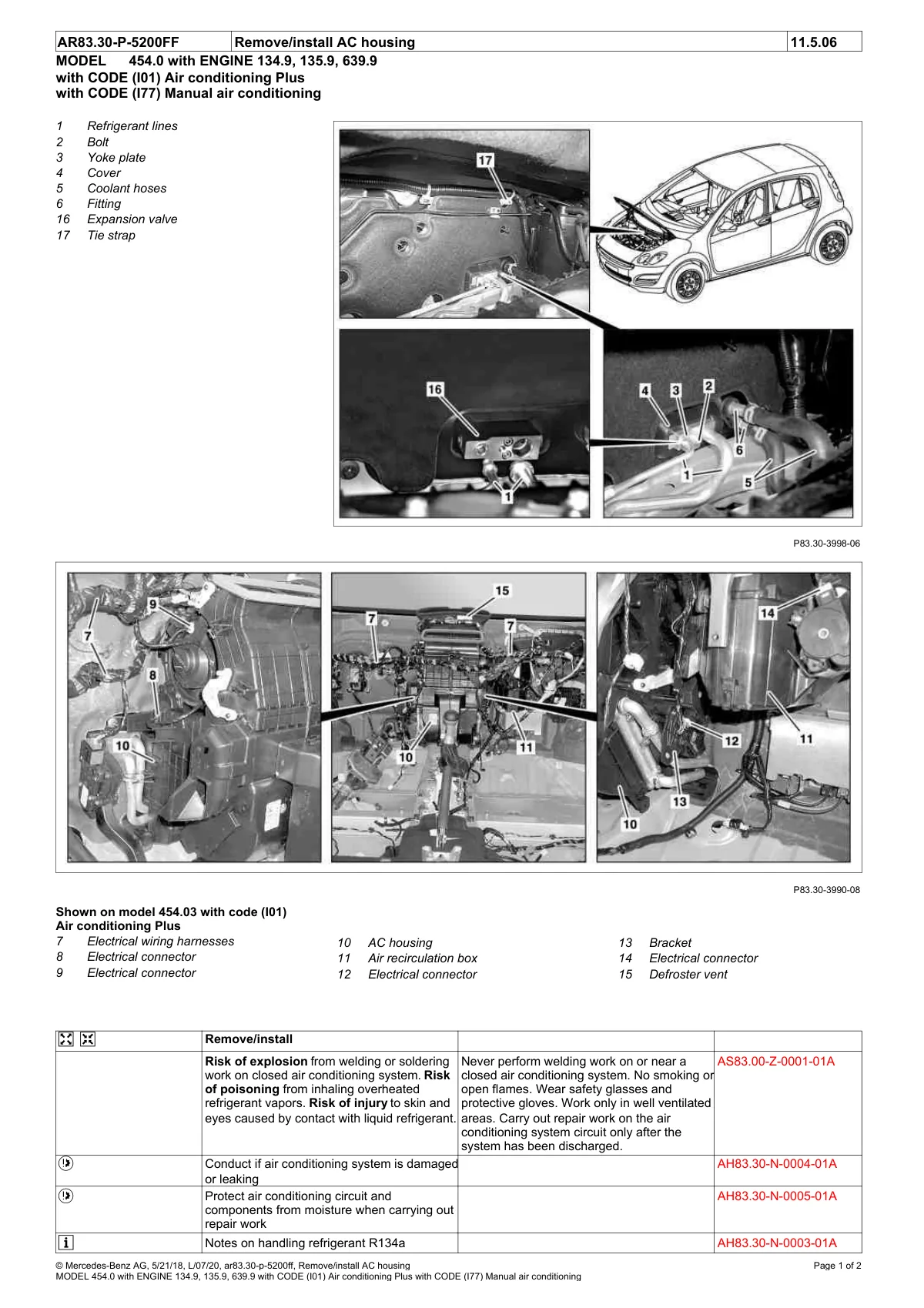

Remove/install AC housing on 454.0 model with engines 134.9, 135.9, 639.9 showing refrigerant lines, bolts, yoke plate, cover, coolant hoses, fittings, expansion valve, and tie straps.

Exploded view of AC housing components with numbered callouts and multiple detail photographs of engine bay assembly points.
