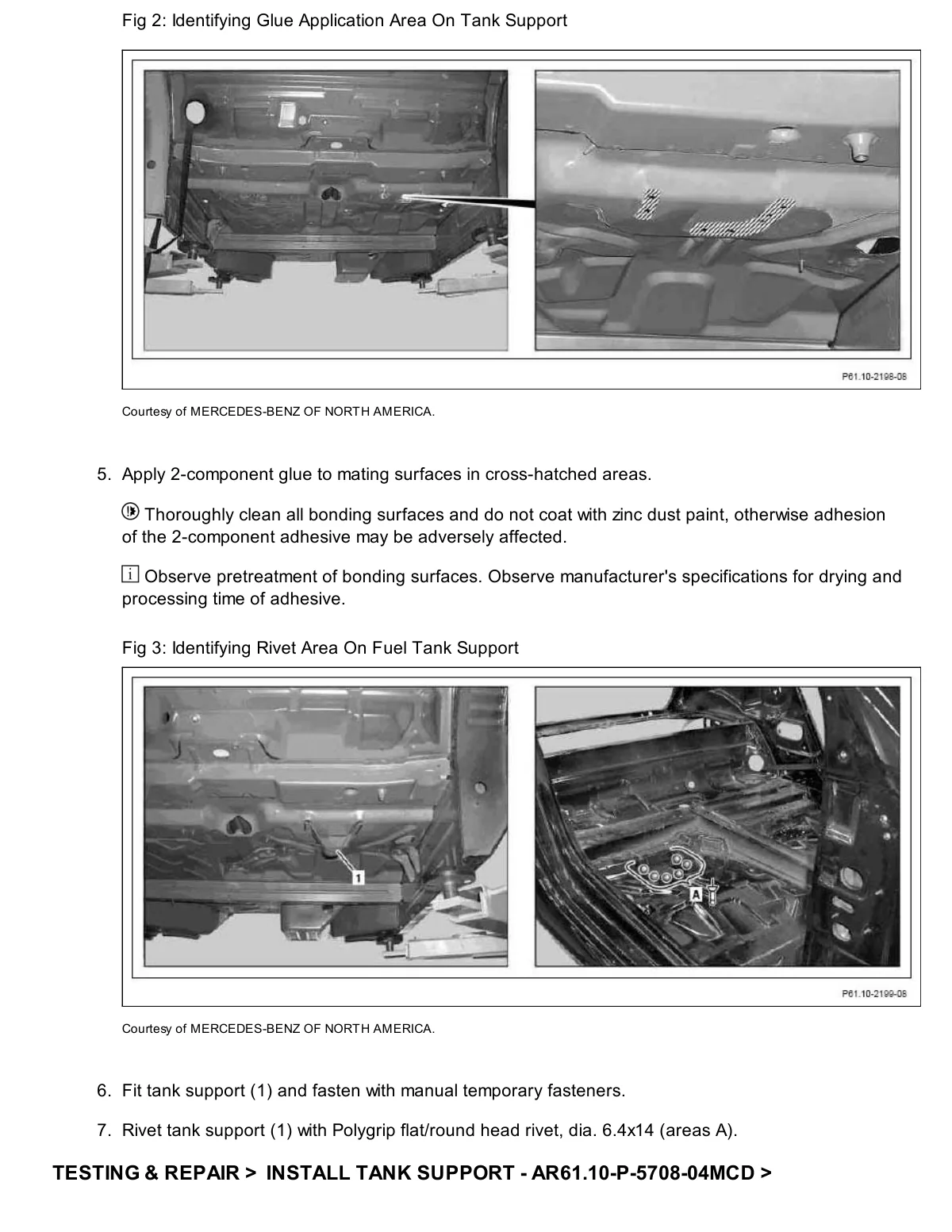

Fuel tank support glue application area and rivet locations on Smart 450/451/452/454 chassis.

Two images showing tank support glue application zones marked with cross-hatching and rivet attachment points labeled A.
