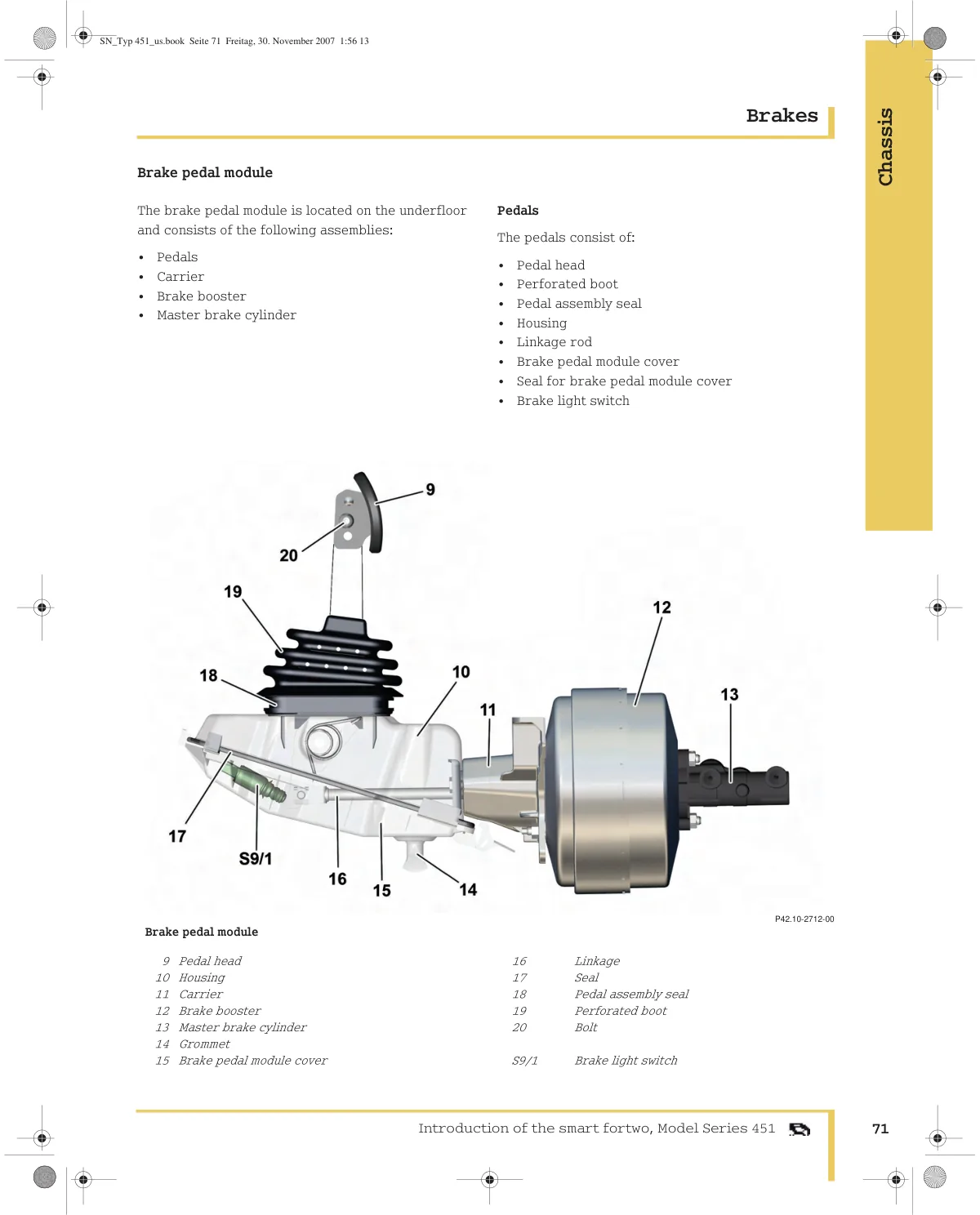

Brake pedal module components with numbered callouts showing pedal head, housing, carrier, brake booster, and master cylinder assembly.

Exploded view diagram of brake pedal module with 12 numbered parts and labels.
