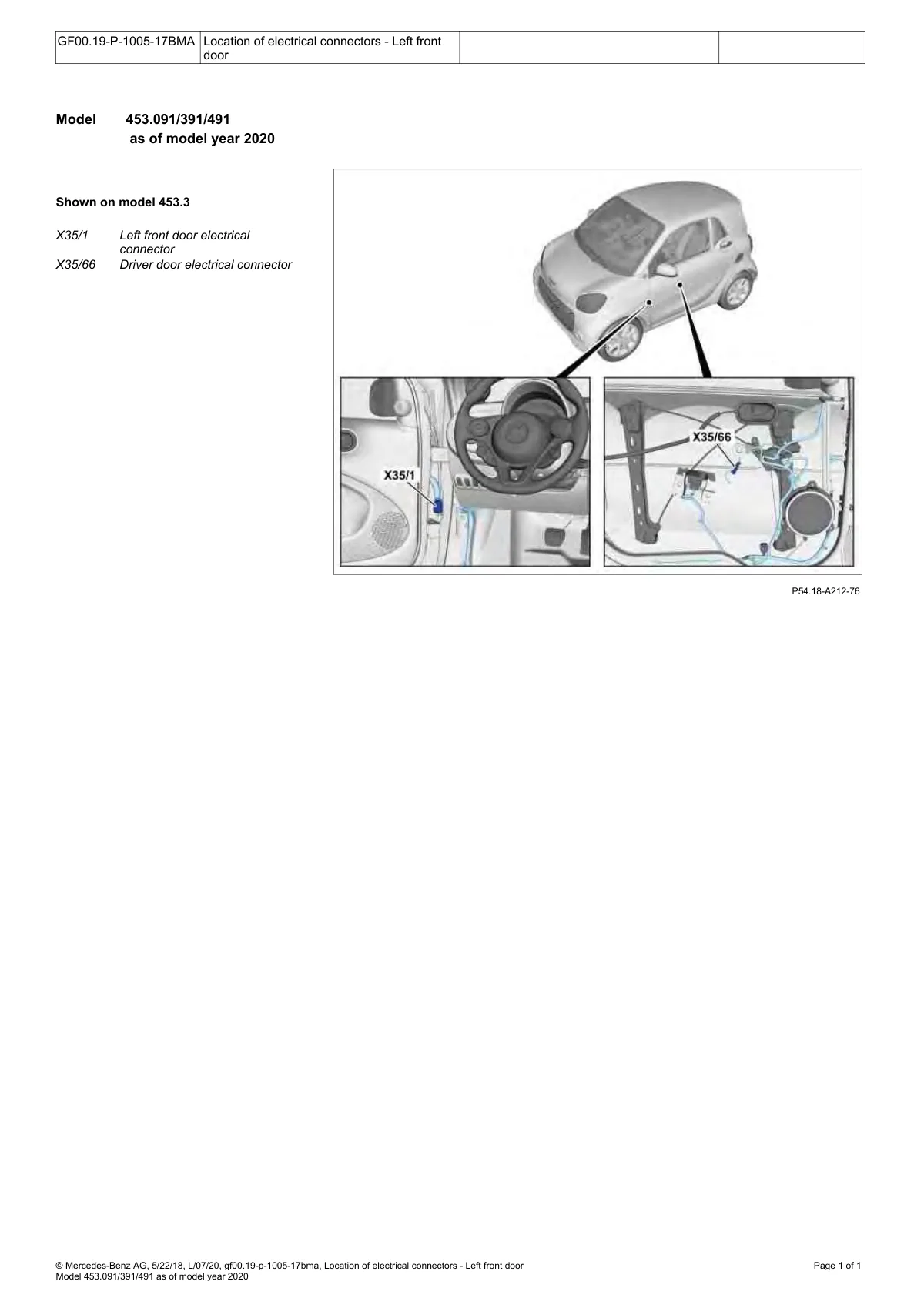

Electrical connector locations on left front door, chassis 453 model 2020 with X35/1 and X35/66 callouts.

Smart Fortwo 453 left front door electrical connectors diagram with numbered callout locations.
