Poly-V-belt tension checks and installation procedure for refrigerant compressor and generator on Smart fortwo 450 chassis.

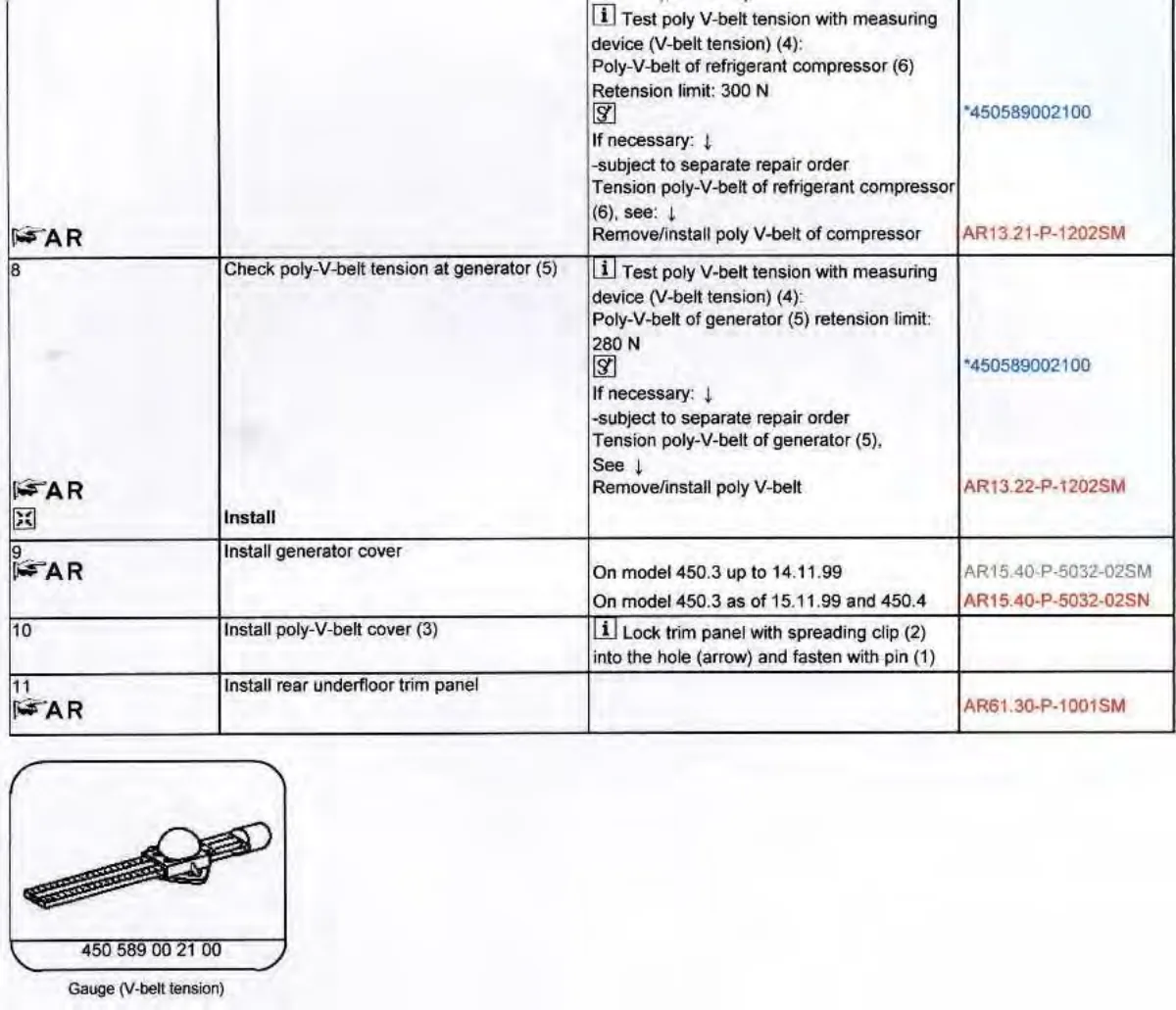

Service manual table showing V-belt tension testing procedures with retention limits and part numbers for compressor and generator.
