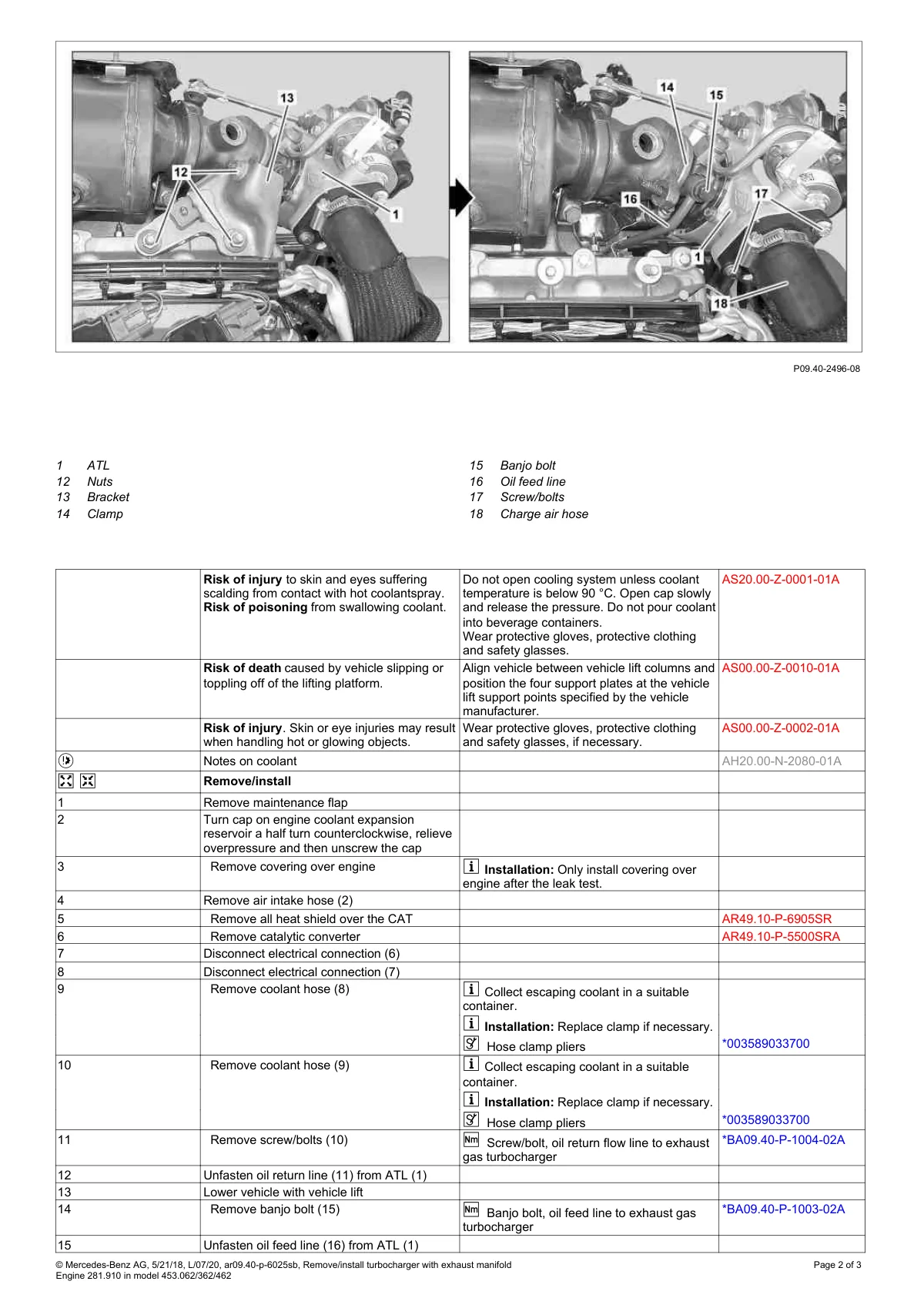

Turbocharger removal and installation procedure with numbered callouts 1-18 showing ATL, nuts, bracket, clamp, banjo bolt, oil feed line, screwbolts, and charge air hose locations.

Two side-by-side black and white photos of turbocharger assembly with 18 numbered callout points and component identification.
